Data Transfer Unit (DTU)

Built-in Wi-Fi & RS485 & RJ45

Our new Data Transfer Unit (DTU) product offers the following features:
Up to 64 microinverter in connection series
Enables zero-export functionality
Provides remote control function

DATASHEET

Products Accessory Data Transfer Unit Data Transfer Unit (DTU)

Highlights

Up to 64 microinverters in connection series
Enables zero-export functionality
Provides a remote control function

Technical Data

Communication to Microinverter (RS485)
Communication port	RS485
Maximum Distance	500m
Baud Rate	9600 bps
Connection Limit	64 Microinverters

Communication to Meter (RS485)
Communication port	RS485
Maximum Distance	100m
Grid Type	Single phase / Three phase
Baud Rate	9600 bps (4800 to 19200 optional)

Communication to Router (WiFi or Ethernet)
Communication port	WiFi / Ethernet
Maximum Distance(WiFi)	100m
Ethernet Port	RJ45(802.3)

Data Collection

DTU can be used with RS485 microinverters to monitor the operating status of the microinverters.

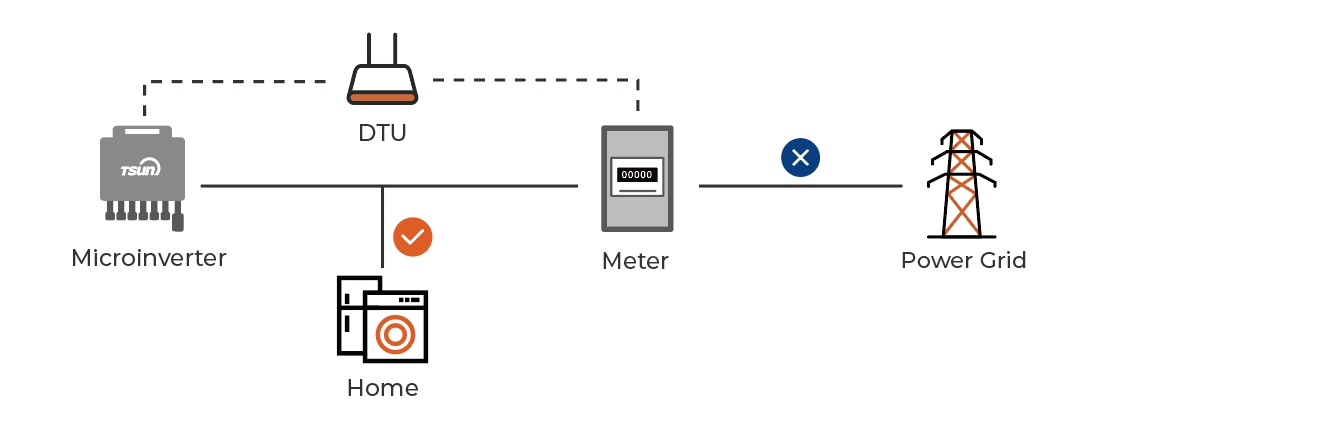

Zero export

DTU can also connect to electricity meter devices, collect power grid information, and control the output power of the

photovoltaic system to achieve zero-export function.

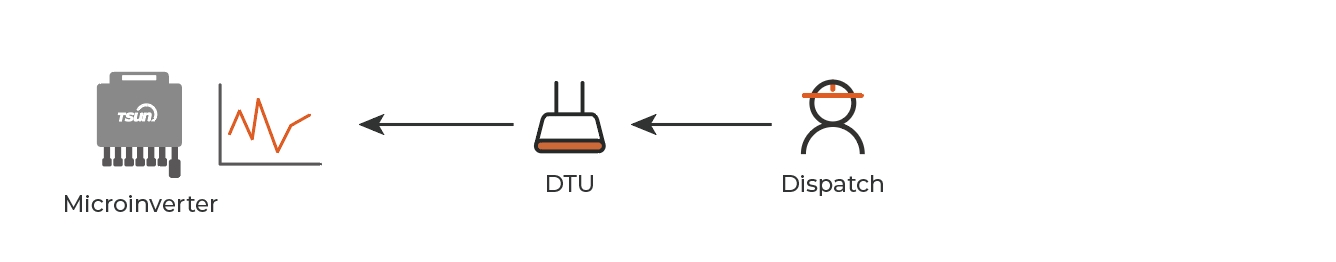

Remote dispatch

DTU also has an external communication interface, which can receive external dispatch commands and regulate output

power of the system.

FAQ

Q: How does the TSUN DTU improve system monitoring?

A: The DTU connects to all microinverters, collecting real-time data on energy production and system performance. Users can remotely monitor and manage their solar system via an app, ensuring efficient energy use and detecting any issues quickly.

Q: What is the benefit of the DTU’s zero-export control?

A: The DTU prevents excess energy from being fed back to the grid by regulating the system output and aligning power generation with consumption, which maximizes self-consumption and reduces wastage.

Q: Can the DTU be used for larger solar setups?

A: Yes, the DTU supports up to 64 microinverters, making it suitable for both residential and commercial solar systems, ensuring scalability and effective management across various installations.
