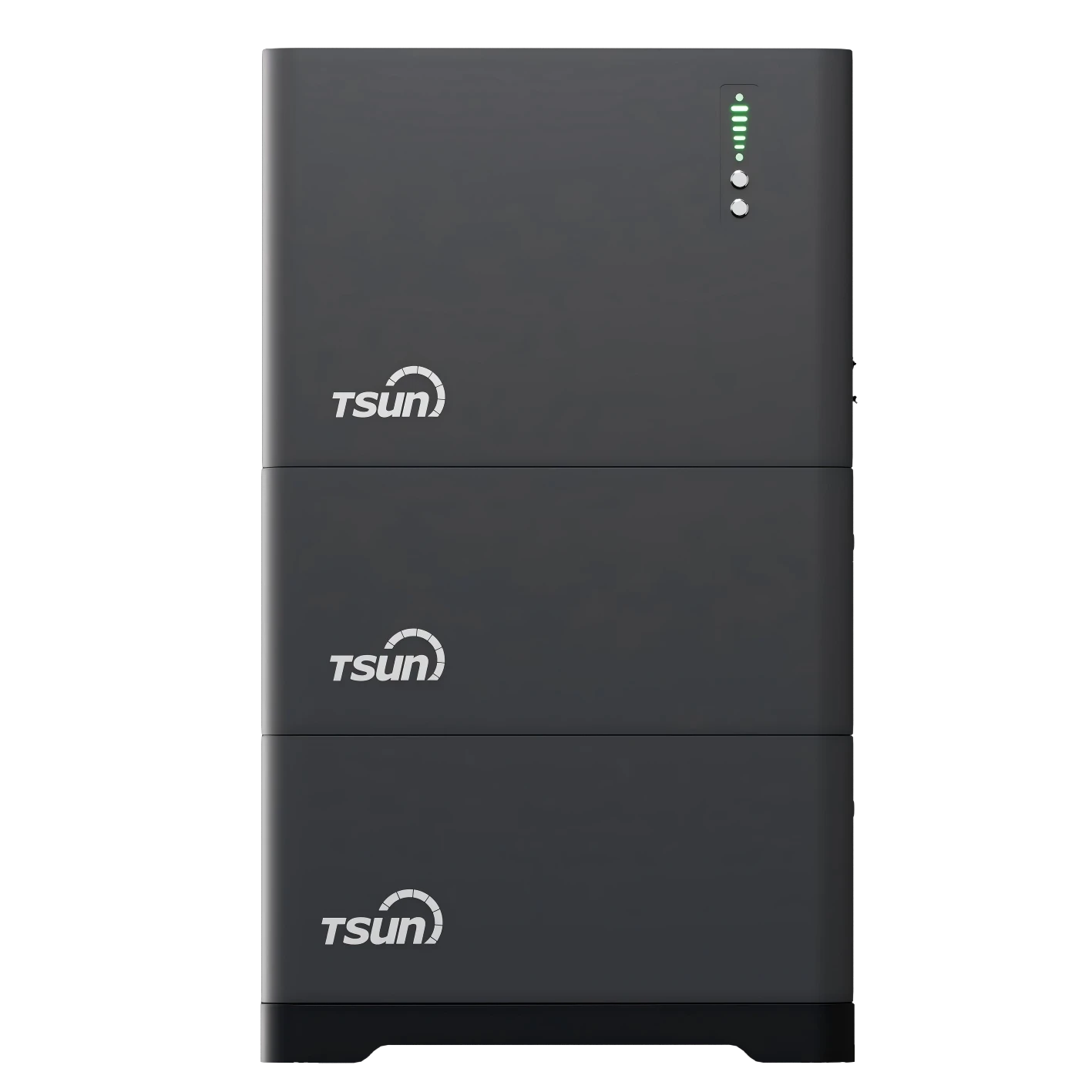

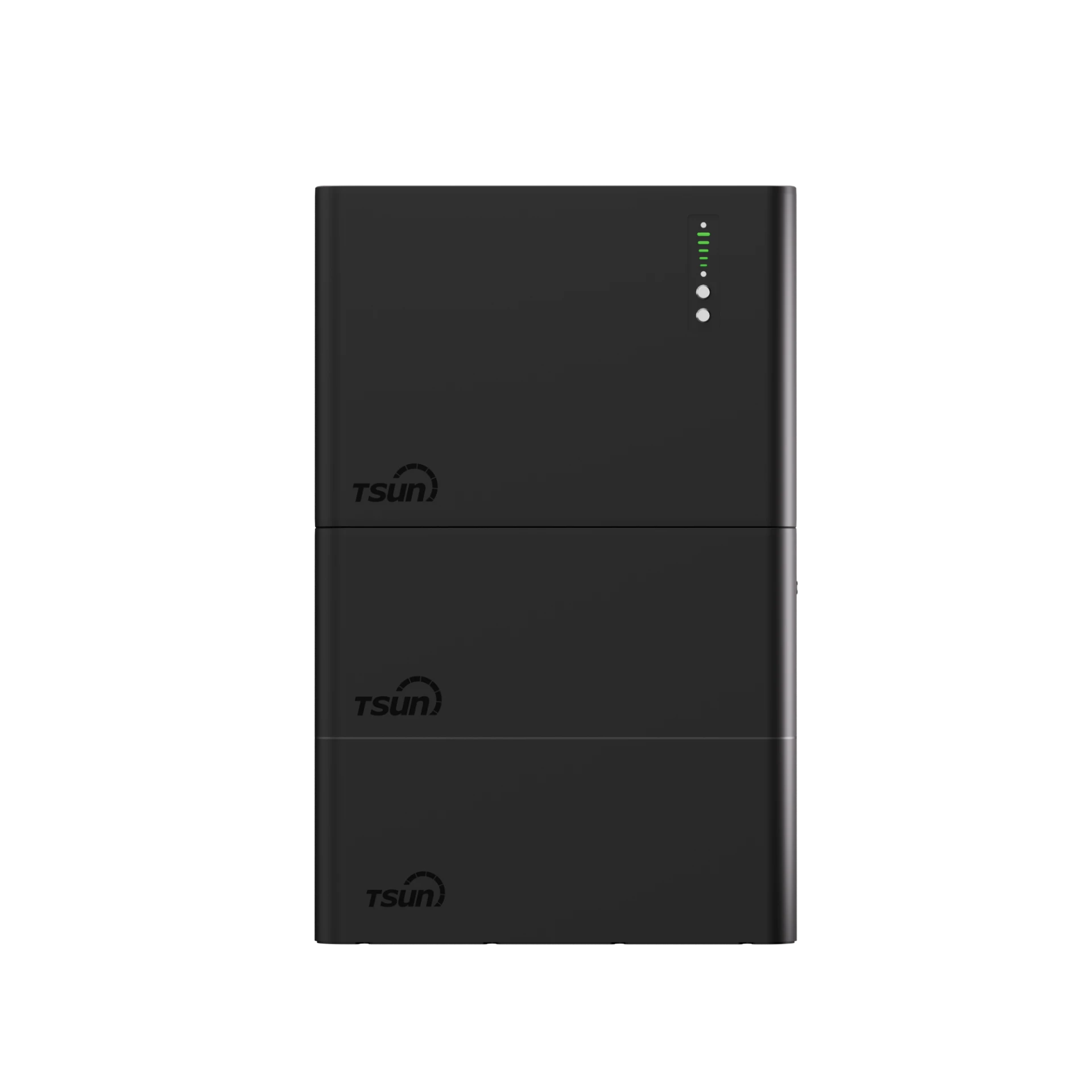

Micro AC Coupled Unit

MAU2000/2000DE/1000/1000DE
2KWh - 10KWh

TSUN Micro AC Coupled Unit is a high-efficiency micro energy storage device designed for home and small commercial users. It has a compact design and high compatibility. It can be seamlessly integrated with the photovoltaic system and is suitable for a variety of home installation environments, providing users with a reliable energy storage solution.

DATASHEET

Products Micro Energy Storage System All-In-One Micro Storage Unit Micro AC Coupled Unit

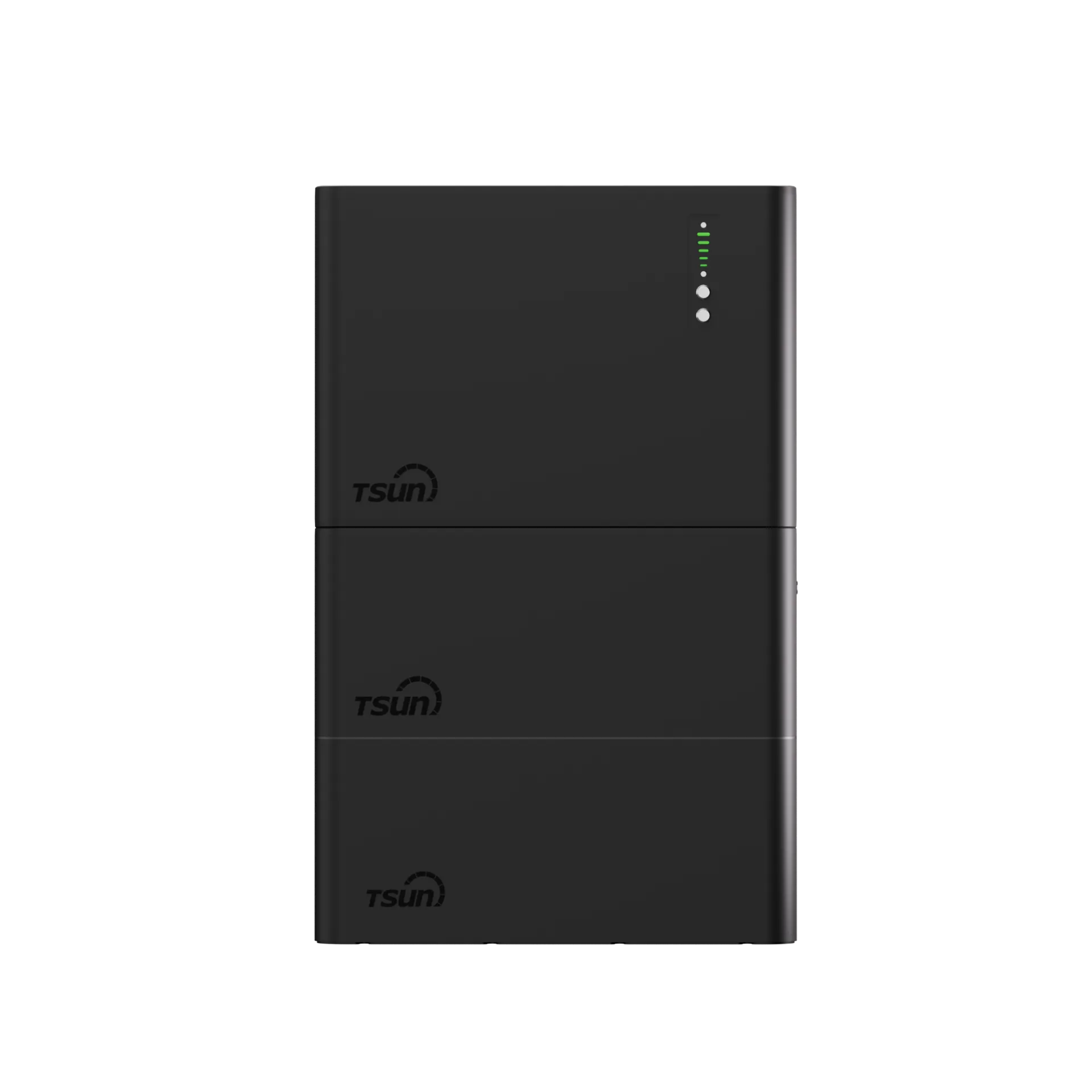

Micro AC Coupled Unit

TSUN Micro AC Coupled Unit is a high-efficiency micro energy storage device designed for home users. It aims to provide a stable and reliable power storage solution for families by seamlessly integrating with existing photovoltaic systems. Its compact design is suitable for flexible installation in home environments, and it has excellent compatibility and can be directly connected and used without changing the original system. This device not only helps home users better utilize solar energy resources during the day but also provides lasting backup power for home appliances at night or when the power grid is out, ensuring the continuity of family life. TSUN Micro AC Coupled Unit has superior energy storage efficiency and intelligent management capabilities, allowing home users to monitor and manage energy storage status through an intelligent platform, and realize intelligent scheduling and optimized use of electricity. Whether it is daily use or emergency standby, this product can maintain excellent performance in a changing power demand environment, provide reliable clean energy support, and is an ideal choice for modern families pursuing green energy self-sufficiency and improving energy utilization.

Technical Data

Item	TSOL-MAU2000	TSOL-MAU2000DE	TSOL-MAU1000	TSOL-MAU1000DE
Battery Capacity (Wh)	2048	2048	2048	2048
Nominal Voltage (V)	51.2	51.2	51.2	51.2
Operating Voltage Range (V)	43.2-58.4	43.2-58.4	43.2-58.4	43.2-58.4
Max. Discharge Power (W)	2000	2000	1000	1000
Max. Discharge Current (A)	45	45	25	25
Max. Charge Power (W)	2000	2000	1000	1000
Max. Charge Current (A)	40	40	20	20

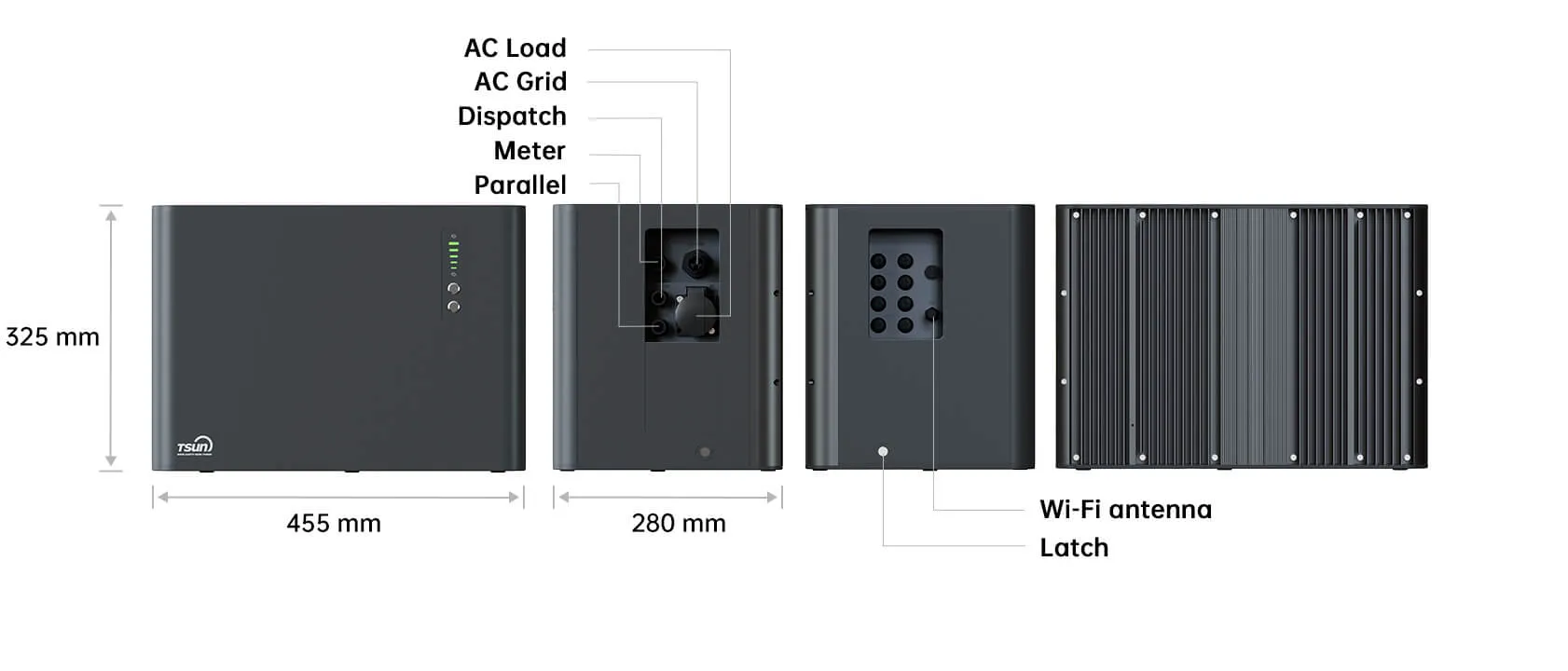

Dimensions [WxHxD mm]	455 * 320 * 280(MAU)/455242280(B2000)
Weight [kg]	29(MAU)/19(B2000)
