Micro Hybrid Storage Unit

MSU2000/2000DE/1000/1000DE
2KWh-10KWh

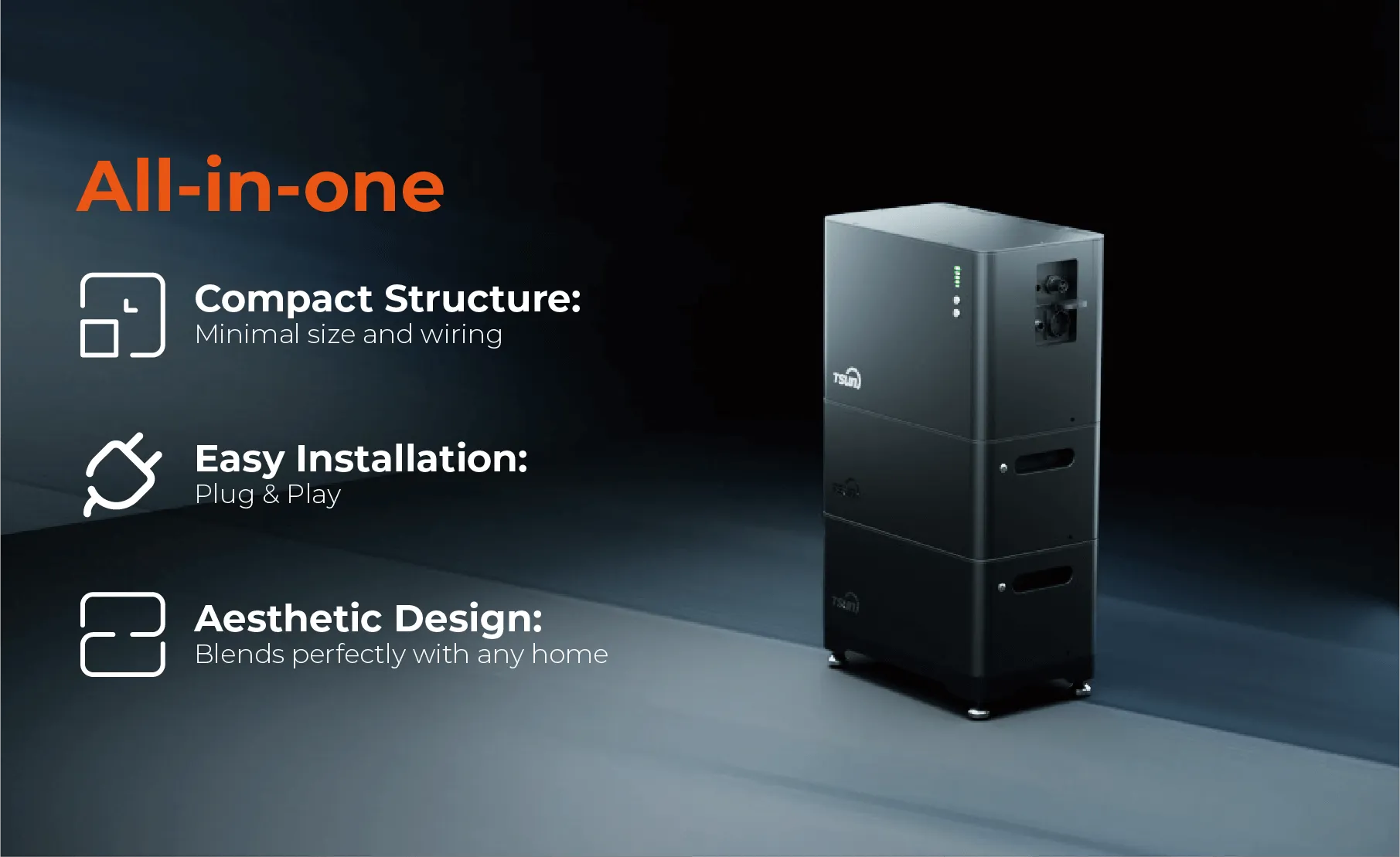

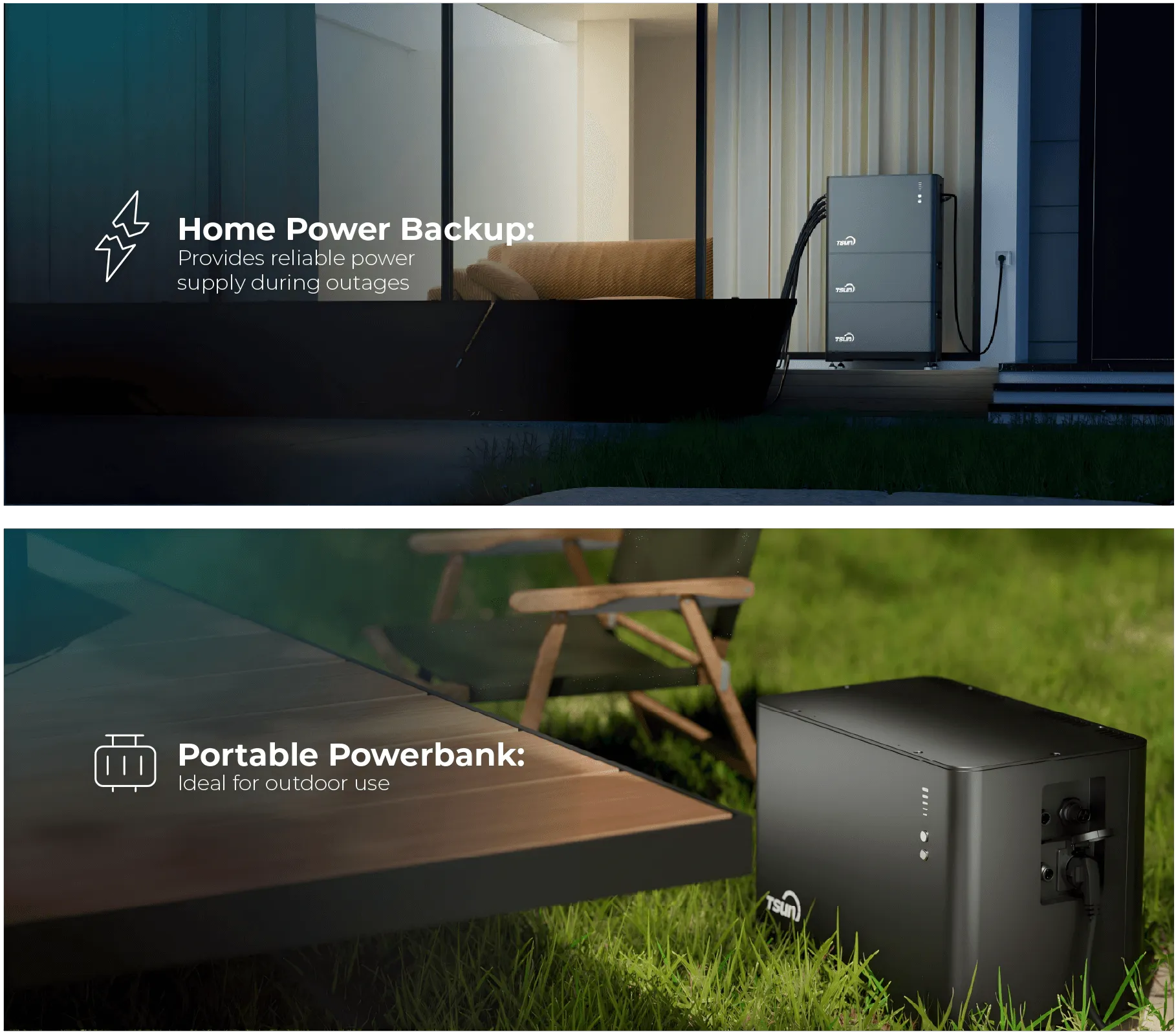

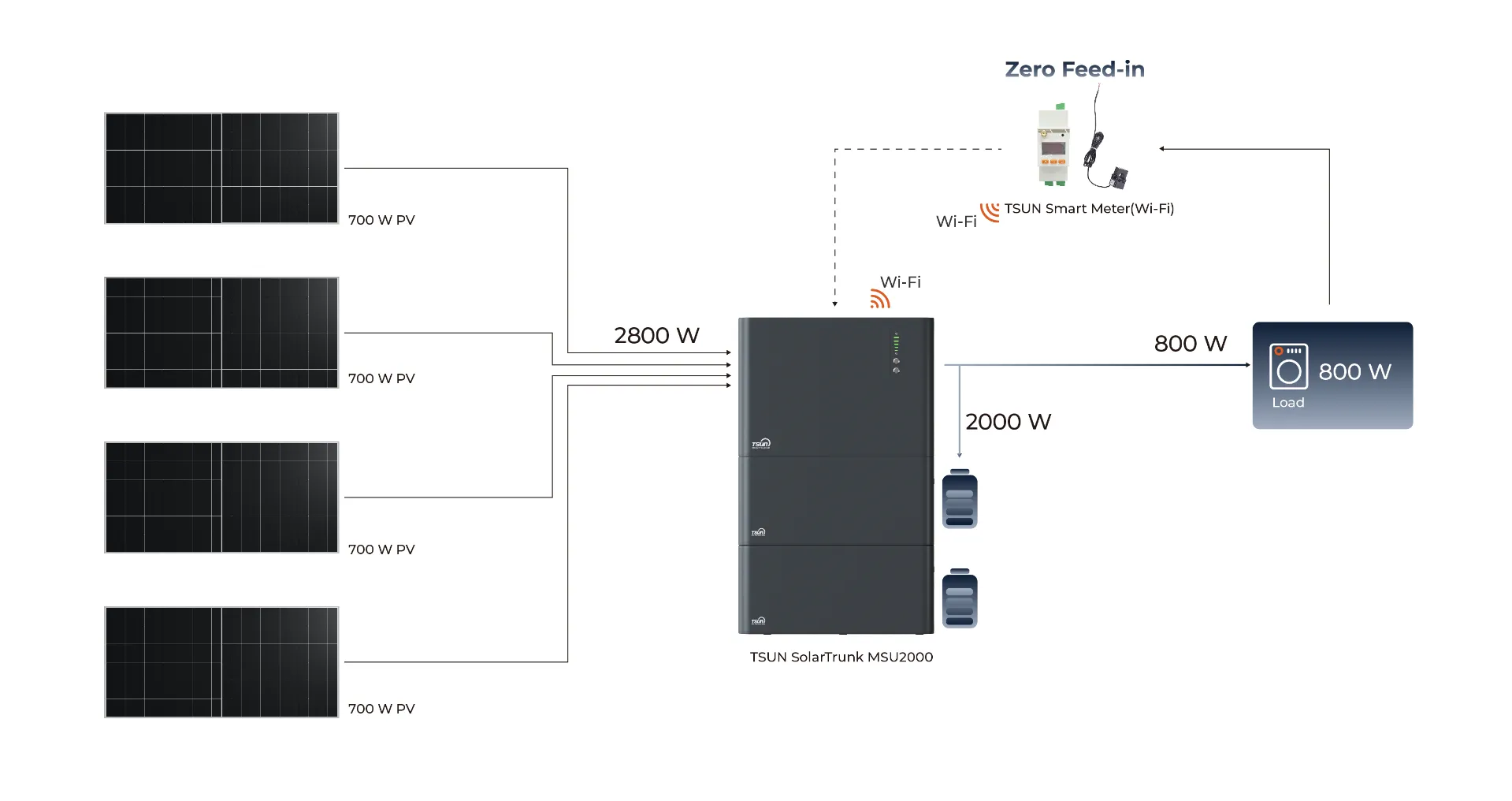

TSUN Micro Hybrid Storage Unit is a compact, plug & play energy storage solution designed for balconies. Ideal for urban residents, it provides efficient backup power in limited spaces, storing excess solar energy for use during nighttime or outages. With easy installation, it seamlessly integrates with small solar panels, offering a cost-effective way to ensure emergency power support and meet essential electricity needs.

DATASHEET

Products Micro Energy Storage System All-In-One Micro Storage Unit Micro Hybrid Storage Unit

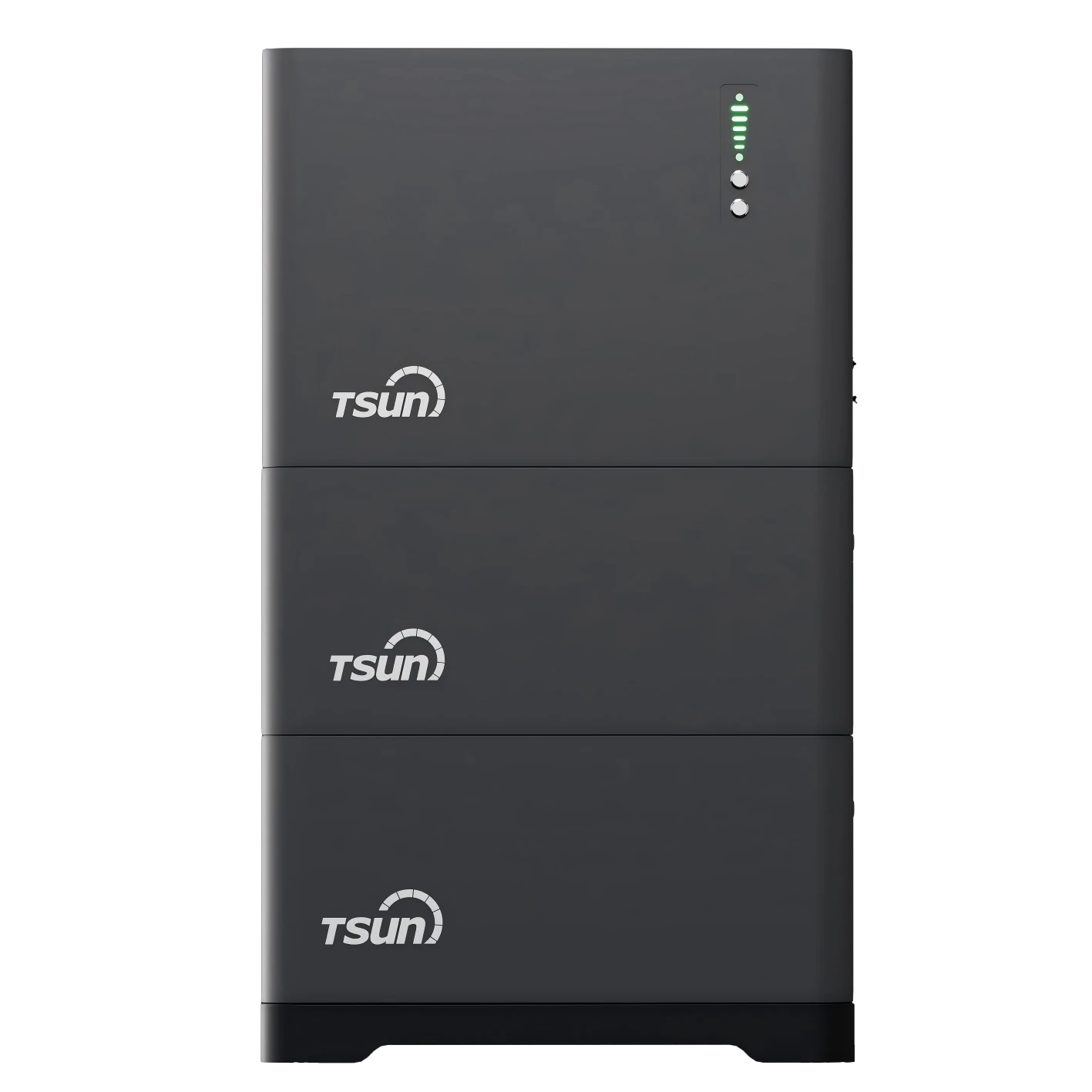

Micro Hybrid Storage Unit

TSUN Micro Hybrid Storage Unit is a small energy storage device designed for balconies, aiming to provide flexible emergency power solutions for urban residents. Its compact design allows it to be easily deployed in limited balcony space, helping users achieve emergency reserves for daily electricity. As a lightweight energy storage product, the Micro Hybrid Storage Unit is designed with ease of installation and high efficiency of energy storage in mind and is suitable for users who need a small backup power supply. Whether it is used for daily backup power or to provide emergency support for home devices in the event of a sudden power outage, the Micro Hybrid Storage Unit can meet the core needs of users. The Plug & Play design of the TSUN Micro Hybrid Storage Unit makes installation more convenient, and users can quickly integrate it into existing photovoltaic systems without complicated operations. It is suitable for use with small solar panels to store excess electricity generated by solar energy during the day and release it when needed, ensuring stable power support at night or during power outages. Micro Hybrid Storage Unit provides a cost-effective balcony energy storage solution for users living in urban apartments to help them maintain basic electricity needs in emergencies.

Technical Data

Item	TSOL-MSU2000	TSOL-MSU2000DE	TSOL-MSU1000	TSOL-MSU1000DE
Recommended Module Power [W]	300-700+
Operating Voltage Range per Input [V]	16-60
Max. Input Voltage per Input [V]	60
Max. Input Current per Input [A]	18
Short-circuit Current per Input [A]	25
Nominal Continous Output Power [W]	2000		1000
Dimensions [WxHxD mm]	455320280(MSU)/455242280 (B2000)
Weight [kg]	29 (MSU) / 19 (B2000)

FAQ

Q: Can the TSUN Micro Hybrid Storage Unit store and use solar energy simultaneously?

A: It stores excess solar energy in the battery and automatically switches to battery power during the night or outages, ensuring continuous energy supply.

Q: Is the TSUN Micro Hybrid Storage Unit easy to install?

A: The system is designed for easy installation with modular components.

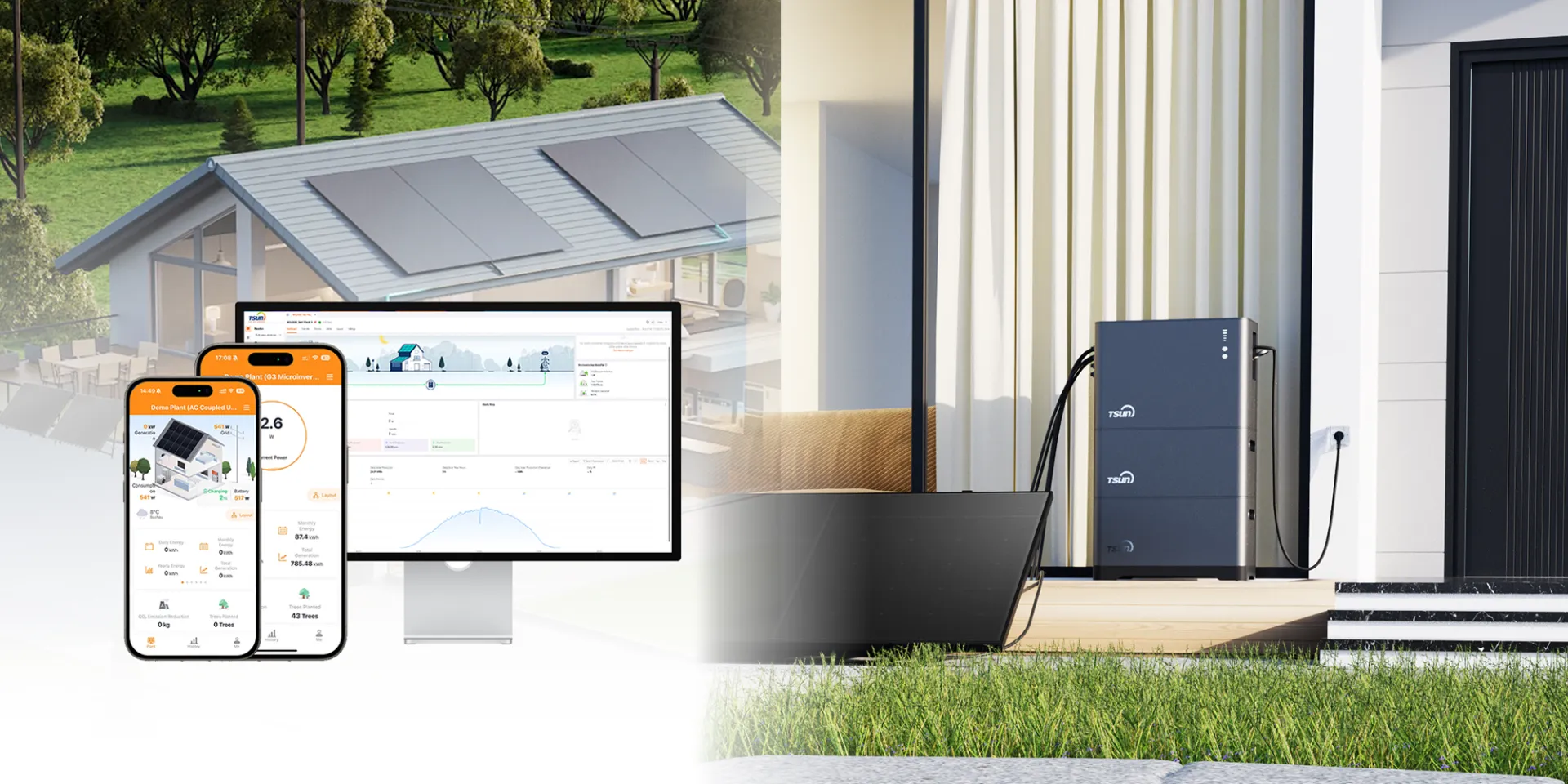

Q: How can I monitor the TSUN Micro Hybrid Storage Unit’s performance?

A: You can monitor the system via a mobile app or web platform, tracking real-time data on battery levels, energy production, and usage.
