A Professional Guide to TSUN Microinverters

A Professional Guide to TSUN Microinverters:

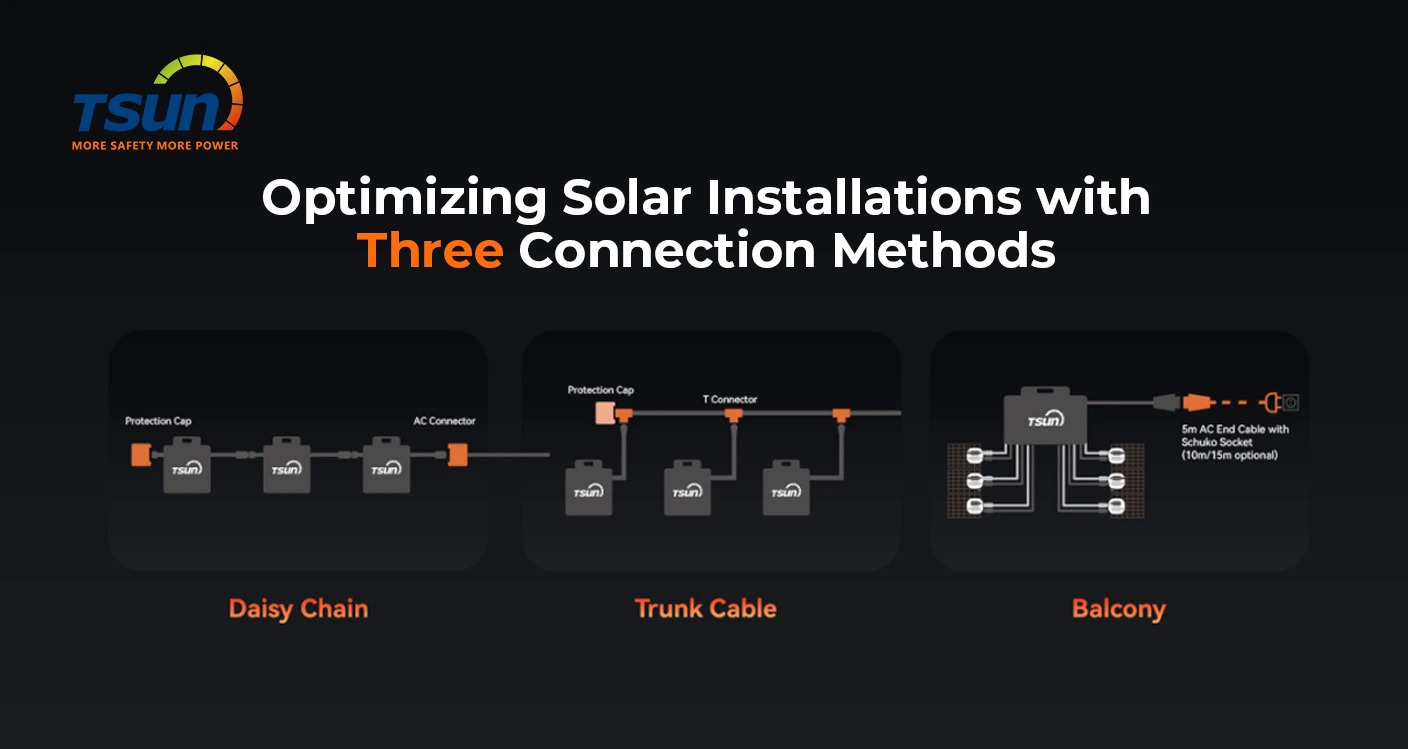

Optimizing Solar Installations with Three Connection Methods

In the solar installation industry, achieving efficient, flexible, and reliable system connections is a critical challenge for professionals. TSUN, a leader in microinverter innovation, addresses this challenge with cutting-edge technology and offers three versatile connection methods to adapt to diverse project needs. Each method is designed to simplify the installation process, enhance system performance, and provide tailored solutions for different scenarios.

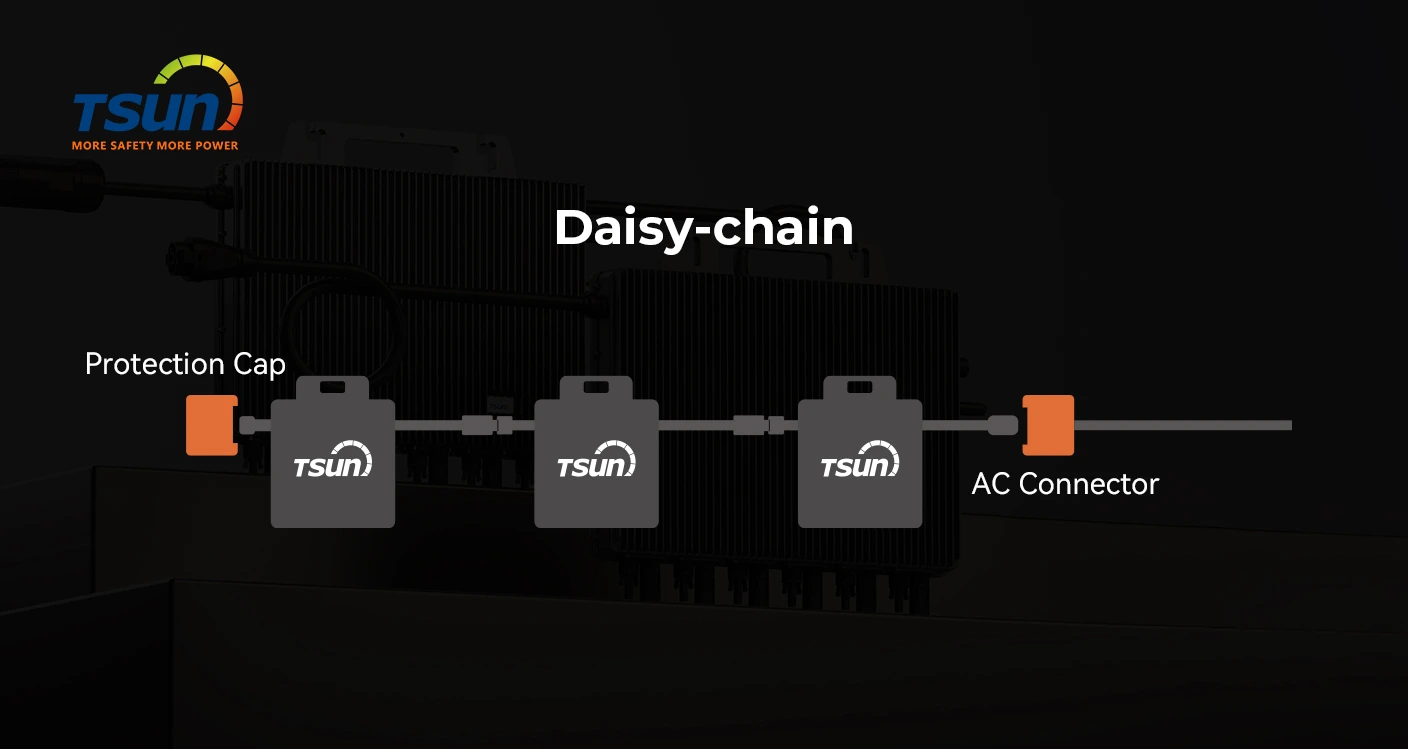

Daisy Chain Connection: Streamlining Simplicity

How It Works: The Daisy Chain method connects microinverters in series using a single cable, significantly reducing the number of components required.

Advantages:

• Simplified wiring for quick installations.
• Reduced material usage and time spent on setup.
• Scalability for future expansions.

Ideal Applications: Residential projects or small-scale commercial installations where scalability and simplicity are essential.

Installer’s Challenge Solved: Managing multiple cables in small spaces can be daunting. The Daisy Chain method minimizes cable clutter, ensuring a cleaner and more efficient installation.

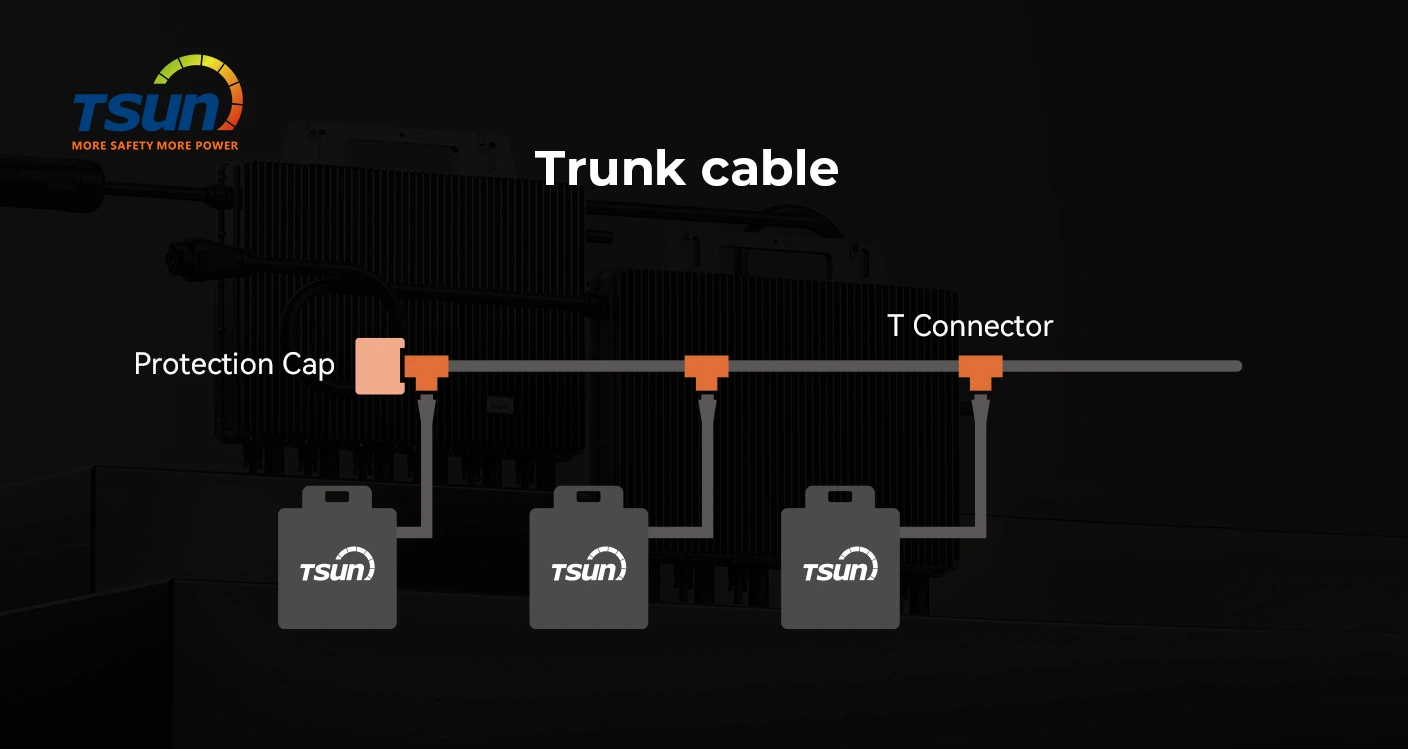

Trunk Cable Connection: Built for Larger Systems

How It Works: A trunk cable serves as the backbone, connecting multiple microinverters in a robust layout suitable for larger energy systems.

Advantages:

• Efficient for medium to large-scale installations.
• Supports higher power output and longer distances.
• Reduces cable waste while maintaining reliable connections.

Ideal Applications: Mid-sized to large-scale commercial projects or solar farms with significant energy demands.

Installer’s Challenge Solved: For larger installations, maintaining consistent performance across multiple microinverters can be a challenge. The Trunk Cable method provides the stability and scalability required for these demanding setups.

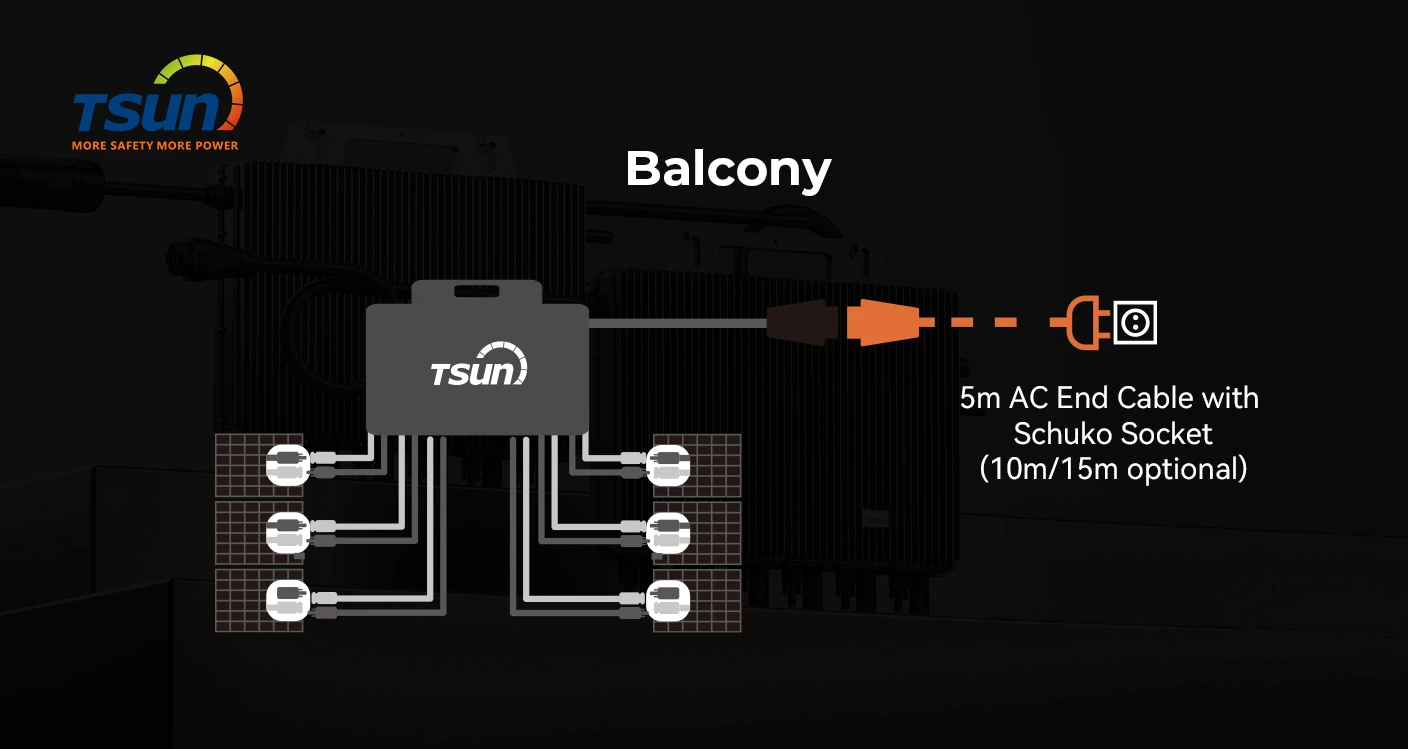

Balcony Connection: Plug-and-Play Simplicity

How It Works: Designed for compact setups, the Balcony method provides a simple, plug-and-play connection for easy solar access in urban settings.

Advantages:

• Convenient for residential use, especially in apartments.
• Minimal wiring required, enabling quick and easy installations.
• Space-saving and user-friendly design.

Ideal Applications: Urban households, small-scale installations, or any scenario where space is limited.

Installer’s Challenge Solved: Bringing solar energy solutions to space-constrained environments can be tricky. The Balcony method makes solar accessible and manageable for everyone.

Tailored Solutions for Every Installation

At TSUN, we understand that no two solar projects are alike. That’s why we’ve designed our microinverters to offer unmatched versatility and compatibility. Building on our commitment to innovation and adaptability, the MX3000D Microinverter exemplifies the flexibility and performance that installers need.

• High conversion efficiency to maximize energy output.
• Flexible compatibility with all three connection methods: Daisy Chain, Trunk Cable, and Balcony.
• Integrated both WIFI and RS485 communication, which offers high reliability, long-distance data transmission, and robust noise immunity, making it ideal for industrial and solar applications.
• Enhanced durability to withstand various environmental conditions.

A recent residential project implemented the MX3000D with a Daisy Chain configuration, achieving remarkable results:

• 30% reduction in installation time.
• Enhanced scalability for future upgrades without additional rewiring.

TSUN’s innovative connection methods and microinverter solutions are designed to empower installers and optimize solar energy systems. Whether you’re working on a small residential project or a large-scale commercial installation, TSUN has the tools to make your job easier and more efficient.

Let’s simplify solar together!

Reach out to us to learn more about how TSUN microinverters can enhance your next solar project.
