Are Microinverter Worth the Extra Money?

Introduction

In recent years, the overall global demand for energy has driven the development of photovoltaic technology, and solar energy has become a renewable Energy choice for many families and businesses. Inverters are responsible for converting DC power into AC power in solar energy systems and are key equipment. Its technological advancement has enabled microinverter to gradually replace traditional string inverter and occupy the market.

Unlike string inverter, microinverter provide independent power conversion and optimization functions for each solar panel, with efficiency and safety advantages. However, the high cost of microinverter has caused concerns among many users.

1. Can users get enough ROI through microinverter?

2. Is the additional investment in microinverter worth it?

Basic Functions of Microinverter

A microinverter is a small device installed on each photovoltaic (PV) module (solar panel), responsible for independently converting the direct current (DC) generated by each panel into alternating current (AC) for household or grid use. This is fundamentally different from traditional central inverters.

In a conventional centralized system, all solar panels are connected in series or parallel, and the DC electricity they generate is fed into a single large central inverter, which then converts it into AC. The main issue with this approach is that if one panel's performance drops due to shading, dust, or damage, the efficiency of the entire system is affected.

Microinverter solve this problem by equipping each solar panel with its inverter, allowing each panel to operate independently. Whether panels are installed at different angles, subjected to varying sunlight conditions, or partially shaded, the performance of one panel will not affect the others. This not only boosts the overall efficiency of the system but also ensures each panel operates at its optimal level.

Key Functions:

Independent Power Conversion: Each solar panel has its inverter, independently converting DC to AC without centralized processing.

Optimized Energy Efficiency: Shading or dirt affecting one panel won’t impact the performance of the entire system.

Increased Flexibility: The system can be easily expanded as users can add more panels without being limited by the capacity of a central inverter.

Although traditional central inverters are more cost-effective, microinverter offer superior performance in complex lighting conditions or challenging architectural environments. Their ability to optimize individual panels makes them ideal for irregular roofs or partially shaded installations.

Core Advantages of Microinverter

Microinverter stand out in solar power systems due to their unique technical features. Unlike traditional string inverter, microinverter optimize each solar panel individually, improving overall efficiency, system flexibility, safety, and maintenance convenience. Here’s a detailed breakdown:

Enhanced System Efficiency

The key advantage of microinverter is their ability to independently optimize each solar panel's performance. Traditional string inverter string panels together, so if one panel is shaded, dirty, or underperforming, the entire system’s output is affected. Microinverter ensure that each panel operates at its maximum potential, even if one panel is shaded or faulty.

Real-world scenario: Microinverter are especially effective in areas with partial shading or complex roof layouts, such as those with trees, chimneys, or other obstructions.

Long-term benefits: By maximizing the output of each panel, microinverter increase total system production, particularly in regions with variable sunlight, shortening the system’s payback period.

Modular Design and Scalability

Microinverter’ plug-and-play design offers significant flexibility for system expansion. Traditional string inverter limit the number of panels based on their capacity, and expanding the system often requires replacing or adding inverters, increasing costs. With microinverter, users can gradually add panels according to their budget and needs without investing in a full system all at once.

Gradual expansion: Users can start with a small solar system and add panels over time, with each panel requiring only one microinverter.

Highly adaptable: Whether upgrading the system or changing installation locations, microinverter adapt without being constrained by existing inverter capacity.

Increased Safety

Safety is a major advantage of microinverter. In traditional systems, the high-voltage DC electricity generated by solar panels must be transmitted to the inverter, posing a risk of fire and electric shock. Microinverter convert DC to AC directly at the panel, eliminating the need for high-voltage DC transmission, which significantly reduces safety hazards.

Low-voltage AC: Microinverter systems use low-voltage AC transmission, greatly reducing the risk of fires due to cable aging or installation errors.

Ideal for households: The increased safety makes microinverter particularly appealing for residential users, especially those with children or pets, where a safer electrical environment is critical.

Real-time Monitoring and Maintenance Convenience

Each microinverter can independently monitor its corresponding panel in real time. This allows users to view performance data for each panel and quickly identify any faulty components. Unlike centralized systems, where troubleshooting requires manually testing each panel, microinverter systems offer remote monitoring through an online platform or app, improving maintenance efficiency.

Faster problem identification: Whether it’s performance drops, shading, or inverter failure, users receive alerts and can act quickly to resolve the issue.

Lower maintenance costs: By pinpointing the exact problem, unnecessary inspection time is reduced, leading to long-term savings in maintenance costs.

Cost and ROI of Microinverter

When evaluating the investment value of microinverter, it's essential to consider both the initial costs and the long-term returns. Although microinverter have a higher initial investment, their long-term benefits typically lead to a significant increase in return on investment (ROI). Here’s a detailed analysis of microinverter costs and ROI:

1. Higher Initial Costs

The initial costs of microinverter systems are relatively high, primarily due to:

Equipment Costs:

Each solar panel requires its microinverter. For large solar systems, this means a substantial number of microinverter are needed, which significantly increases equipment costs.

Each microinverter must have reliable cooling systems, communication modules, and safety features, adding to the cost of each unit.

Installation Costs:

Installing microinverter is more complex compared to centralized systems. Technicians must install a microinverter on each panel and ensure all devices operate correctly, which increases labor costs and potentially extends installation time.

For large systems, the complexity and labor intensity of installation further increases costs. While some modern microinverter are designed for easier installation, overall costs remain higher than for centralized systems.

Maintenance Costs:

Despite higher initial costs, microinverter generally have lower long-term maintenance costs. Their independent operation reduces the overall failure rate of the system, leading to less frequent maintenance and repairs.

2. Long-term Savings and Returns

The investment return of microinverter is reflected in several long-term benefits:

Increased Energy Efficiency:

Microinverter optimize the performance of each solar panel independently, so even if some panels experience shading, dirt, or damage, other panels continue to operate at peak efficiency.

In practical applications, this optimization can significantly enhance the overall energy output of the system. For example, TSUN’s microinverter maintain high efficiency even in extreme weather conditions, further boosting energy production.

Reduced System Downtime:

Microinverter offer real-time monitoring, allowing users to immediately see the status of each panel. This rapid identification and resolution of issues reduce system downtime.

TSUN’s microinverter come with advanced monitoring systems that improve fault detection and repair efficiency, minimizing energy loss due to system failures.

Lower Energy Loss:

By optimizing each panel’s performance, microinverter reduce the energy loss caused by uneven light or differences in panel performance. This efficiency gain translates into higher electricity output and improved ROI.

3. TSUN Microinverter’ Efficient Design

TSUN microinverter offer notable advantages in design and performance, enhancing their effectiveness in extreme environments:

Efficient Design:

TSUN microinverter are designed for high efficiency, with optimized cooling systems and power conversion capabilities, ensuring stable performance even in high or low temperatures.

The built-in 105°C WiFi chip is a key feature, enabling stable operation in high-temperature environments. This design enhances system durability and reliability, making it suitable for extreme weather conditions.

Enhanced System Stability:

TSUN microinverter' efficient design not only improves energy efficiency but also increases overall system stability and reliability. Even under extreme weather conditions or prolonged use, the system maintains stable operation and reduces maintenance needs due to equipment failures.

High Investment Returns:

Due to their superior performance and reliability, TSUN microinverter offer higher investment returns over the long term. Increased overall energy production and reduced energy loss result in improved ROI.

Application Scenario Analysis: When Are Microinverter Worth It?

It is suitable for families with shaded or irregular roofs

When there are many obstructions on the roof or the angles are complex, the advantages of microinverter are very obvious. Traditional centralized or string inverters work by connecting multiple photovoltaic modules in series. If one of the modules is shaded or the illumination is uneven due to the angle problem, the current of the entire series circuit will be affected (the short-board effect), and the power generation efficiency will be greatly reduced. However, in the case of microinverter, each photovoltaic module is individually connected to a microinverter, and each module operates independently. In this way, even if a certain module is shaded or the illumination angle is not good, other unaffected modules can still perform efficient power conversion under the action of their respective microinverter, and the power generation efficiency of the entire system will not be affected by the problems of individual modules. This independent operation characteristic enables the microinverter to maximize the use of the light energy received by each photovoltaic module in a complex roof environment and improve the overall power generation efficiency.

microinverter in off-grid applications

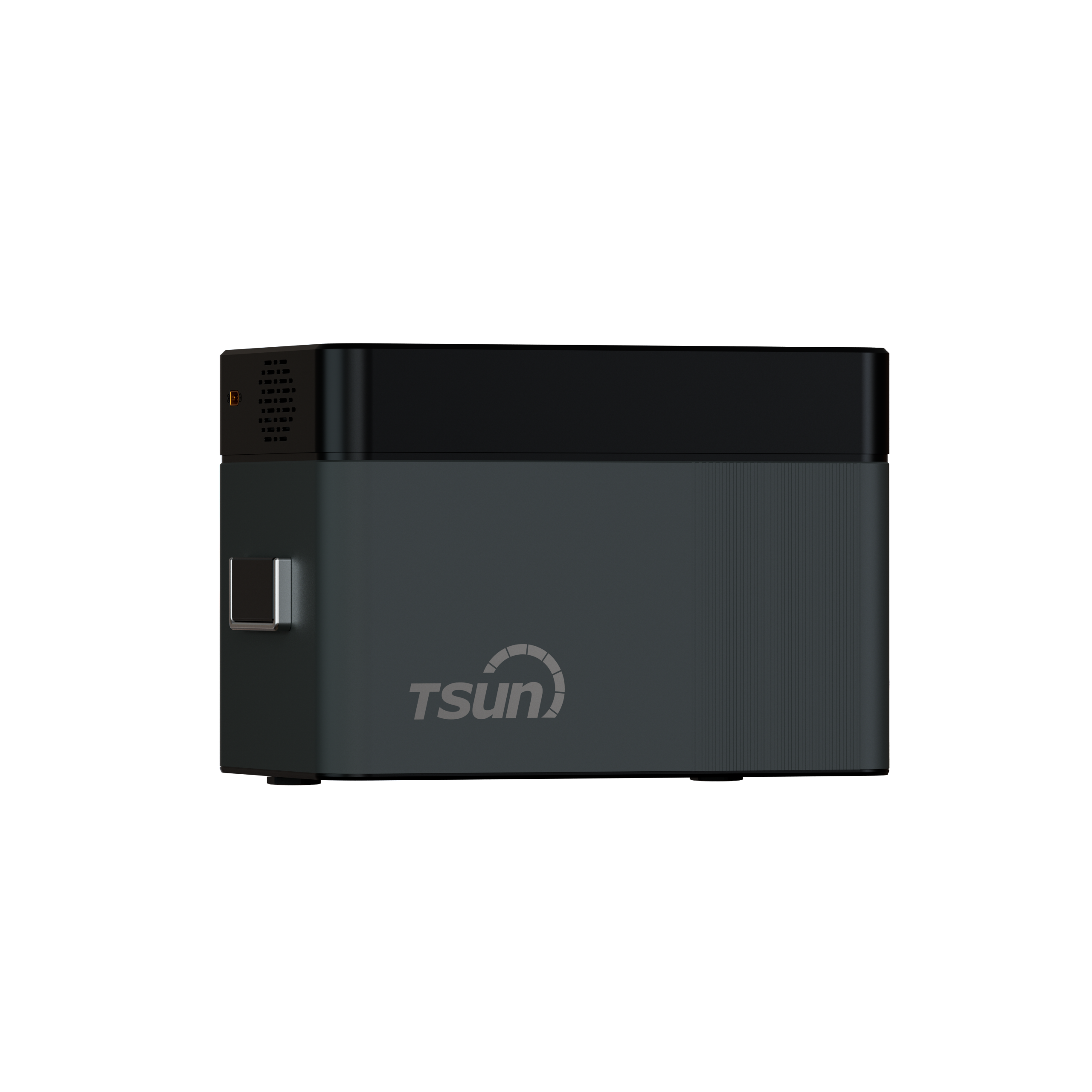

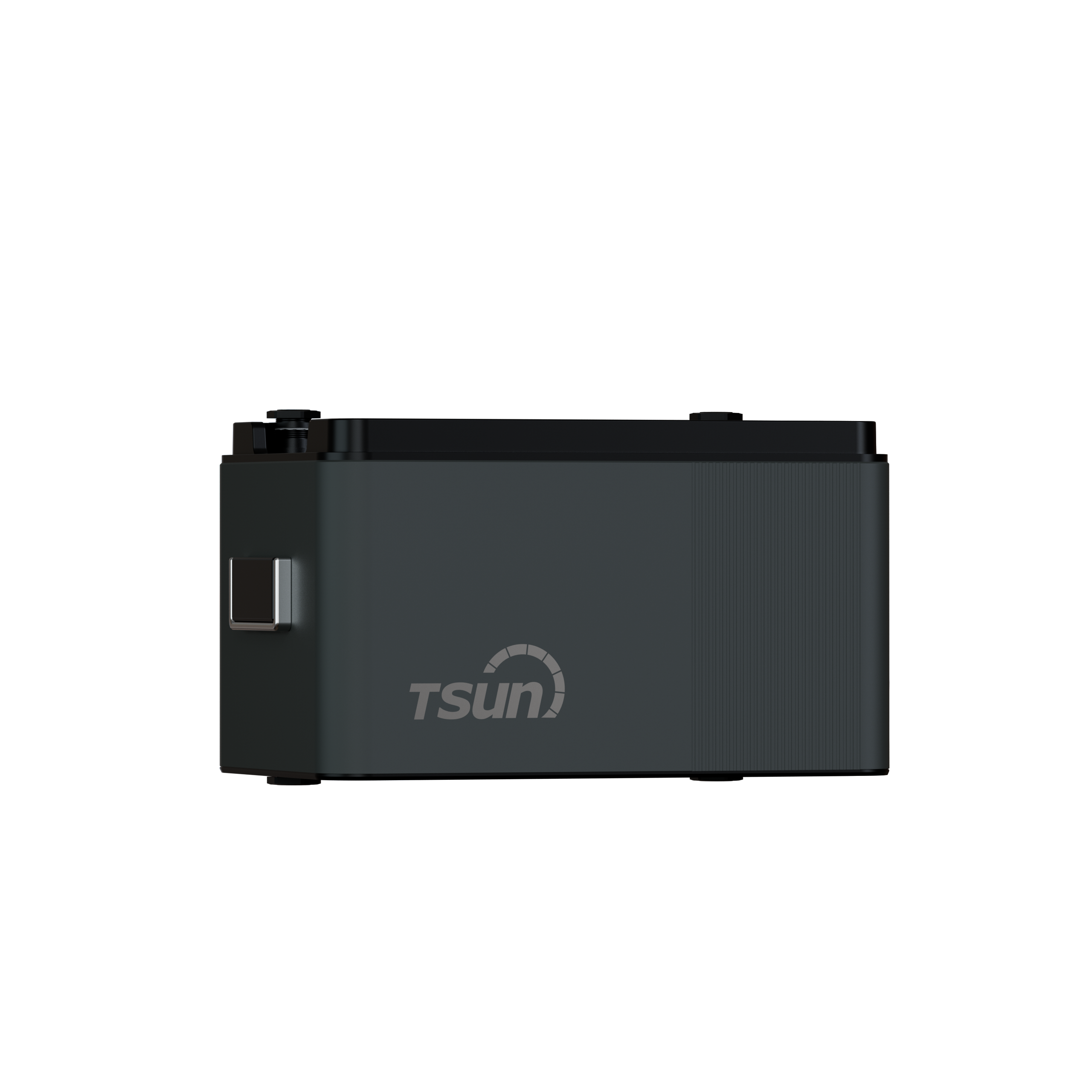

Taking the P1000, B1000, and other devices of TSUN as examples, when used in combination with microinverter in off-grid systems, they can provide more efficient energy management and energy storage solutions. In off-grid scenarios, the stability of energy supply is crucial. microinverter can efficiently convert the direct current generated by photovoltaic modules into alternating current to directly supply power to local loads. The P1000, B1000, and other devices of TSUN can achieve intelligent management and energy storage functions of energy. For example, the P1000 may have an advanced charging control algorithm, which can reasonably control the charging process according to the battery state, load requirements, and photovoltaic power generation power, ensure that the battery is in the best charge-discharge state and extend the battery life. The B1000 may have a high-efficiency energy storage conversion efficiency, which can quickly store the excess electric energy and stably output electric energy when needed. The cooperation of microinverter and these devices can realize seamless conversion and efficient utilization of energy, and provide a reliable power guarantees for users in off-grid environments. At the same time, through the analysis of relevant information on the Internet, it can be known that this combination can also realize remote monitoring and intelligent control functions. Users can view the system operation status, energy storage situation, and other information in real-time through mobile phone APPs or network platforms, and can also perform remote operations and parameter settings, which improves the convenience and intelligent level of using off-grid systems.

The ideal choice for small and medium-sized systems

For small-scale household or medium-sized commercial photovoltaic systems, microinverter are an ideal choice. Its modular design has many advantages. In small-scale household systems, users can gradually increase the number of photovoltaic modules according to the household electricity demand and the roof area. The modular design of the microinverter makes it possible that for each additional photovoltaic module, only a corresponding microinverter needs to be simply added without large-scale modification of the entire system. This flexibility allows the system can be easily expanded according to the actual situation of the user. In medium-sized commercial systems, this advantage is also very obvious. The illumination conditions and electricity loads in different regions are different. By using microinverter, the number of photovoltaic modules and microinverter can be flexibly configured according to the specific situation of each region to achieve the optimal design of the system. Moreover, because the microinverter are distributed, the fault detect

Comparison Between Microinverter and String Inverters

In photovoltaic system design and implementation, selecting the right type of inverter is crucial for overall system performance, cost-effectiveness, and maintenance management. Microinverter and string inverters each have their unique advantages and limitations. Understanding the comparison between these two types can help make more informed decisions. Below is a detailed comparison of microinverter and string inverters, especially for grid-connected applications and large-scale systems, along with the technical advantages of TSUN microinverter.

1. Trade-offs for Grid-Connected Applications and Large-Scale Systems

Advantages of Microinverter:

Component Optimization: Microinverter are installed on each solar panel, allowing individual optimization of each panel’s performance. This means that if one panel's performance declines due to shading, dirt, or malfunction, it won’t impact the performance of other panels, thereby enhancing the overall system efficiency.

Flexible Expansion: The modular design of microinverter makes system expansion straightforward. Users can gradually add solar panels as needed without major modifications to the existing system.

Safety: Since microinverter convert DC to AC near each panel, they reduce the risks associated with high-voltage DC transmission, improving system safety, particularly for residential and small commercial systems.

Advantages of String Inverters:

 Cost-Effectiveness: In large-scale grid-connected systems, string inverters are often more cost-effective due to lower equipment costs and simpler installation processes. String inverters aggregate the DC output from multiple panels and convert it to AC, reducing the total number of devices and associated costs.

Simplified Maintenance: Maintenance is relatively straightforward with string inverters, as it typically involves servicing one or a few inverters rather than one for each panel. This streamlined maintenance process is particularly important for large-scale systems.

Suitability for Large-Scale Systems: String inverters are designed to handle high-capacity power conversion tasks, making them suitable for large solar farms and commercial facilities, where large-scale power generation needs are considered.

2. TSUN Microinverter' Leading Technology

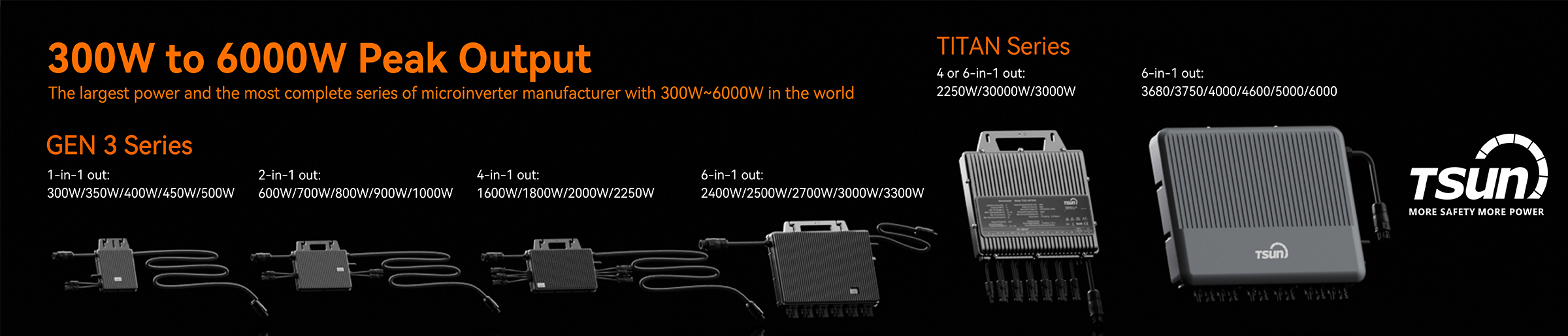

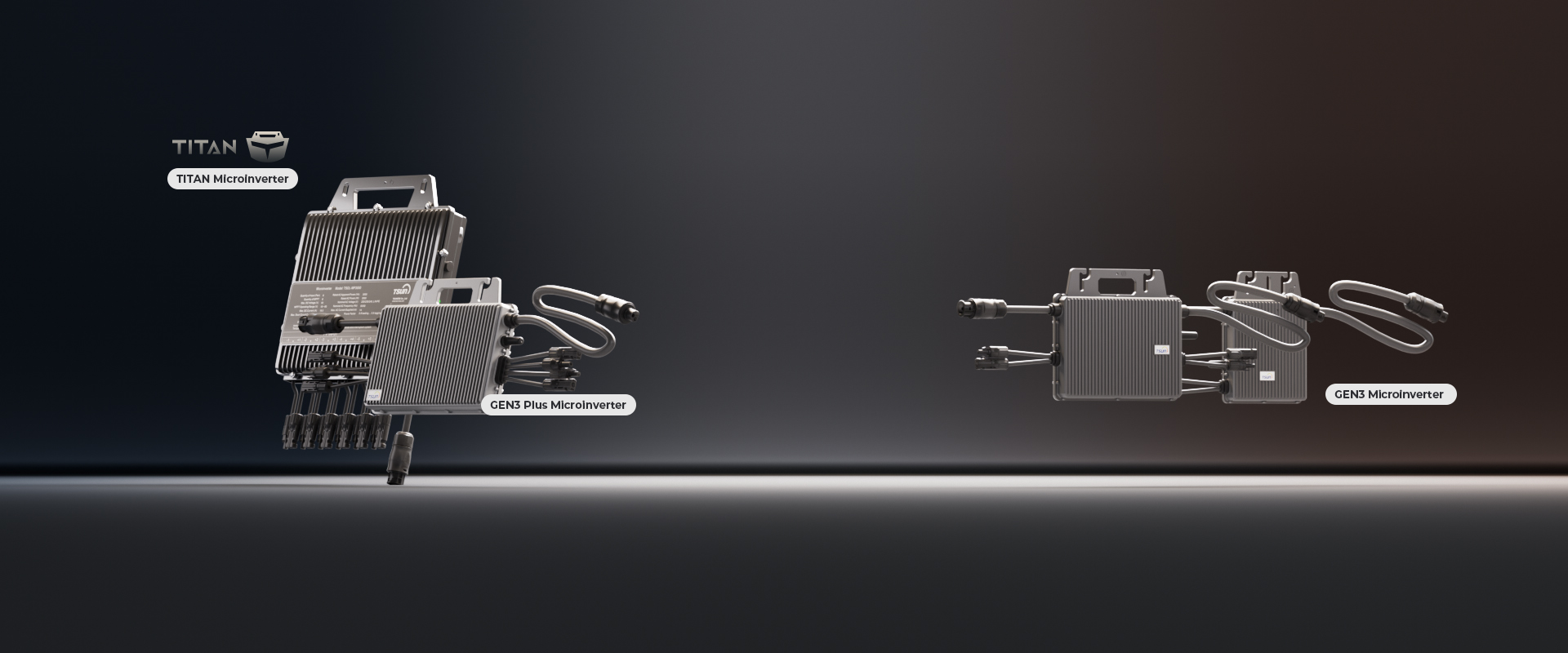

TSUN’s range of microinverter, including the TITAN and GEN3 series, represents advanced technology in the industry, providing efficient, reliable power conversion and monitoring support.

TITAN Series:

 High-Efficiency Conversion: The TITAN series is designed for high-power solar systems, capable of handling higher power outputs while maintaining efficient power conversion rates. This makes it ideal for applications requiring high energy efficiency under strong sunlight conditions.

Robust Weather Resistance: TITAN series microinverter feature exceptional weather resistance, such as built-in 105°C WiFi chips, ensuring stable operation under various extreme environmental conditions. This durability ensures system reliability in different climates.

GEN3 Series:

Modular Design: The GEN3 series microinverter utilize a modular design, offering configurations like 1-in-1, 2-in-1, and 4-in-1, suitable for various sizes of solar systems. The flexible design allows users to choose the appropriate configuration based on specific needs.

Smart Monitoring: GEN3 series microinverter come with advanced smart monitoring capabilities, enabling real-time performance tracking of each solar panel, providing detailed data reports and fault diagnostics. This intelligent monitoring capability makes system maintenance and management more convenient.

Optimized Efficiency: GEN3 series enhances overall system efficiency through independent optimization of each solar panel, reducing efficiency losses due to the performance decline of individual components.

Conclusion: Investment Value of Microinverter

Microinverter offer significant investment value in photovoltaic systems through their notable advantages and long-term returns. Although the initial investment may be higher, the benefits they provide often offset the additional costs, making them a worthwhile option to consider.

Enhancing System Efficiency: Microinverter optimize the performance of each solar panel independently, reducing the impact of shading, dust, or damage on the overall system. Compared to traditional String inverter, microinverter maximize the efficiency of each part of the photovoltaic system, ensuring that overall power generation is maximized.

Increasing Safety: Microinverter convert DC power to AC directly at each panel, minimizing the risks associated with high-voltage DC transmission and improving system safety. This feature is especially beneficial for residential solar systems, effectively reducing fire hazards and other safety risks.

Providing Flexible Expansion: The modular design of microinverter allows users to gradually expand their systems as needed without requiring a large initial investment. This flexibility enables systems to be adjusted according to actual needs, accommodating different budgets and scaling requirements.

Although the initial cost of microinverter is higher, their long-term benefits and enhanced power output can effectively offset these extra costs. By improving power generation efficiency and reducing maintenance costs, microinverter offer a higher return on investment (ROI) over time.

Get more consulting services: If you have any questions about the investment value of microinverter or need help deciding whether to install TSUN's microinverter, you can click here to contact our experts. We provide personalized advice and support to help you make the best choices. By understanding TSUN's microinverter products, you can fully unleash the potential of photovoltaic systems and achieve more efficient and safer energy solutions.
