Do Microinverters work with a battery?

Introduction

As global demand for renewable energy continues to rise, more households continue to choosing solar power as their primary energy source. However, the limitation of solar power lies in its reliance on daylight for energy generation, while household electricity needs are typically around the clock. To address this issue, battery storage systems have emerged at the right time. These systems can store excess electricity generated by solar systems during the day and provide continuous power at night or during outages.

This method of energy storage significantly enhances the efficiency and flexibility of solar systems, especially when batteries are used in combination with microinverters. The energy conversion and utilization rates of the entire system are further improved. So, how does microinverter works in tandem with batteries, and what benefits does this combination offer to homeowners?

The Working Principle of Microinverter and Battery

How Microinverters Convert DC Power from Solar Panels to AC Power

The primary function of a microinverter is to convert the direct current (DC) generated by solar panels into alternating current (AC) for household use. Solar panels produce DC power based on solar radiation, and microinverters directly process this energy and convert it into AC power, which can be used by household appliances. Unlike traditional centralized microinverters, microinverters are installed behind each individual solar panel, independently managing the output of each panel. This design significantly enhances system flexibility and efficiency, ensuring that even if one panel is shaded or malfunctions, the others continue to operate efficiently.

How Batteries Store DC Power

The core function of a battery pack is to store and release DC power. When the solar panels generate more DC power than the household requires at the moment, the excess energy is stored in the battery pack instead of being wasted. This stored energy can later be converted into AC power through the microinverter and used by the household at night, on cloudy days, or during power outages. The energy storage system acts as a regulator in the solar power system, balancing the timing of energy production and consumption, ensuring a continuous power supply throughout the day.

Features of TSUN Balcony Microinverters and DCU

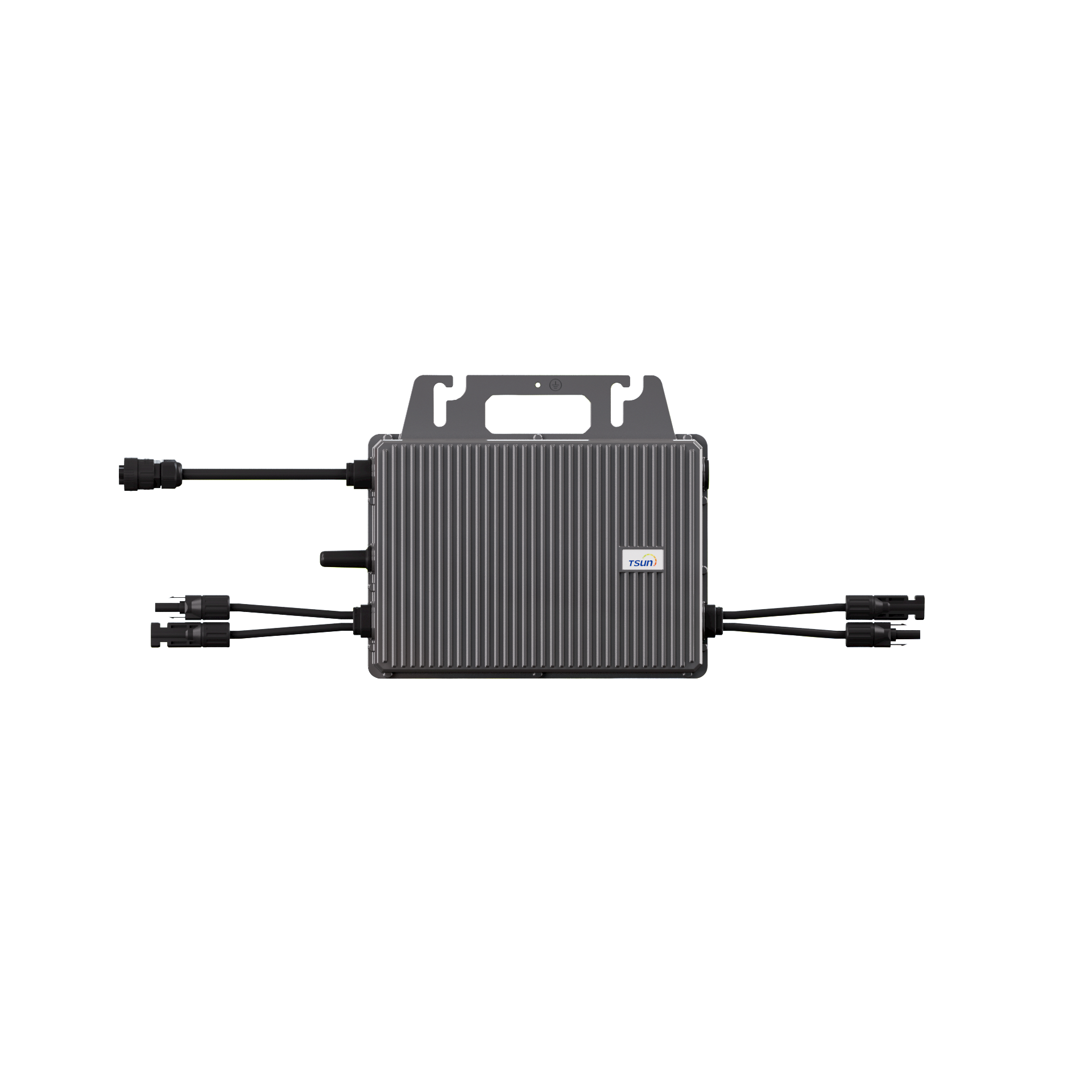

Balcony Microinverter (GEN3 2-in-1 Series)
TSUN's balcony microinverter is a 2-in-1 device designed for residential solar systems. This microinverter can handle the output of two solar panels, offering higher efficiency while reducing equipment costs. Its plug-and-play design makes installation straightforward—users only need to connect the solar panels to the microinverter to quickly convert DC power into AC power for home use. This device is not only efficient and reliable but also supports integration with energy storage systems, allowing users to maximize the use of solar power, whether for immediate consumption or for storage and later use.

DCU (Direct Current Coupling Unit)

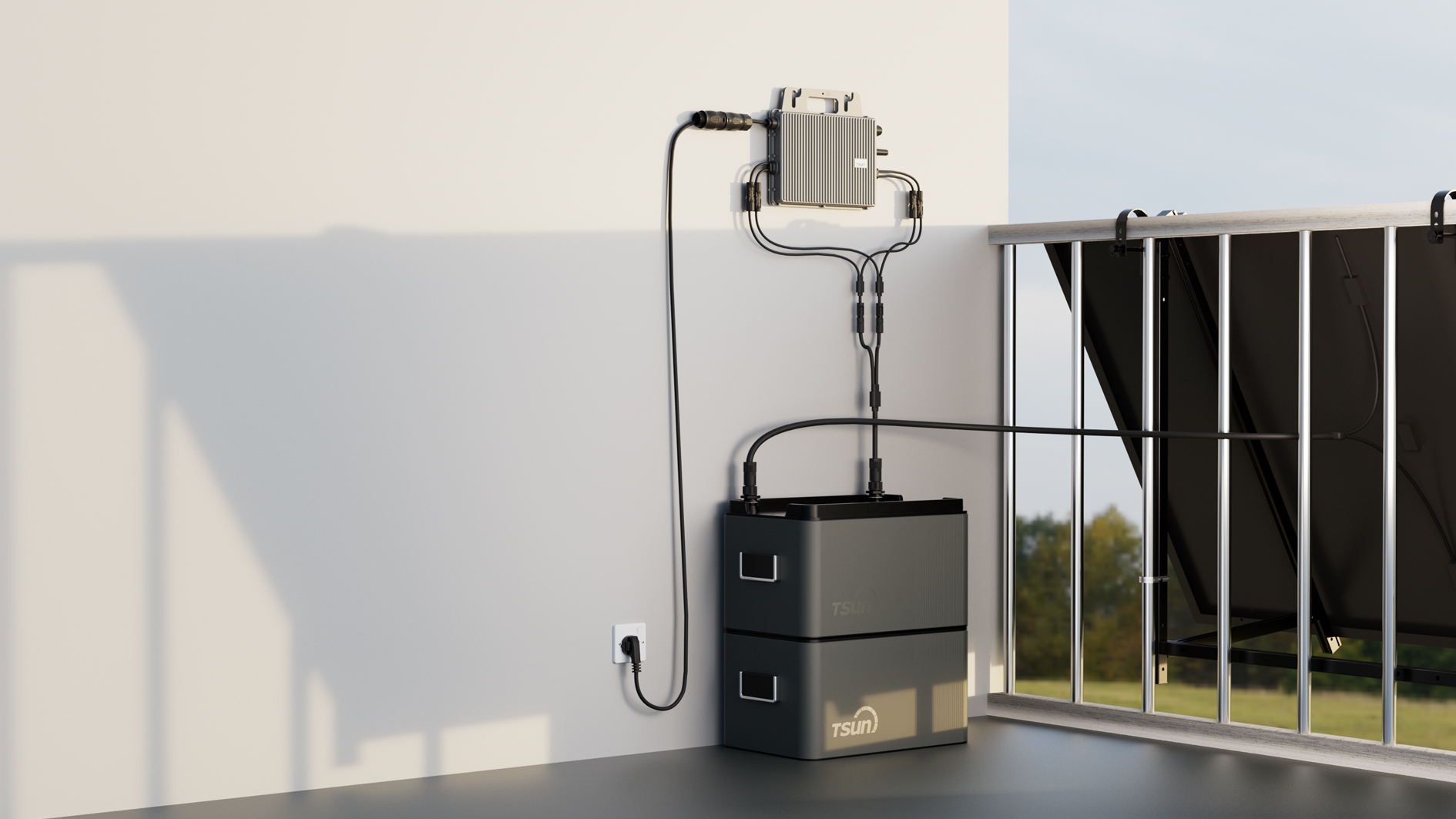

TSUN's DCU is a battery pack designed specifically for storing DC power and features plug-and-play compatibility with both solar panels and microinverters. The DCU collects excess DC power generated by the solar panels and stores this energy in the battery. When power is needed, the DCU outputs the stored energy to the microinverter via DC cables, where it is then converted into AC power for household use. The DCU not only efficiently stores DC power but also works with TSUN's P1000 device to provide off-grid power for outdoor use.

Advantages of TSUN DCU+ microinverter

1. Plug-and-play design

TSUN's DCU (DC coupling unit) and microinverter are designed to provide a very good user experience, using a plug-and-play solution. This means that users only need to connect the DCU to the photovoltaic panel and microinverter to start using it, without a complicated installation process. This design saves time and simplifies the system configuration, so that even non-professional users can easily complete the installation and use the equipment.

2. Improved energy utilization

A significant advantage is the improvement in energy utilization. The amount of DC power generated by photovoltaic panels may exceed the immediate needs of the home during the day. This excess power will be stored in the battery through the DCU, thus avoiding energy waste. At night or during power outages, the power stored in the DCU can continue to be converted into AC power through the microinverter, ensuring that the home can still get a stable power supply when there is no sunlight. This energy storage mechanism improves the overall efficiency of the system and makes the home energy supply more reliable.

3. High compatibility

TSUN's DCU is not only compatible with the company's microinverters, but also shows high compatibility. It can be used in conjunction with other devices such as P1000 to provide off-grid power solutions. P1000 has a built-in inverter that can convert the DC power stored in the DCU into AC power and provide power to outdoor devices through multiple output interfaces. This flexible compatibility makes the DCU system not only suitable for home photovoltaic systems, but also supports various outdoor power needs, providing users with more usage scenarios and flexibility.

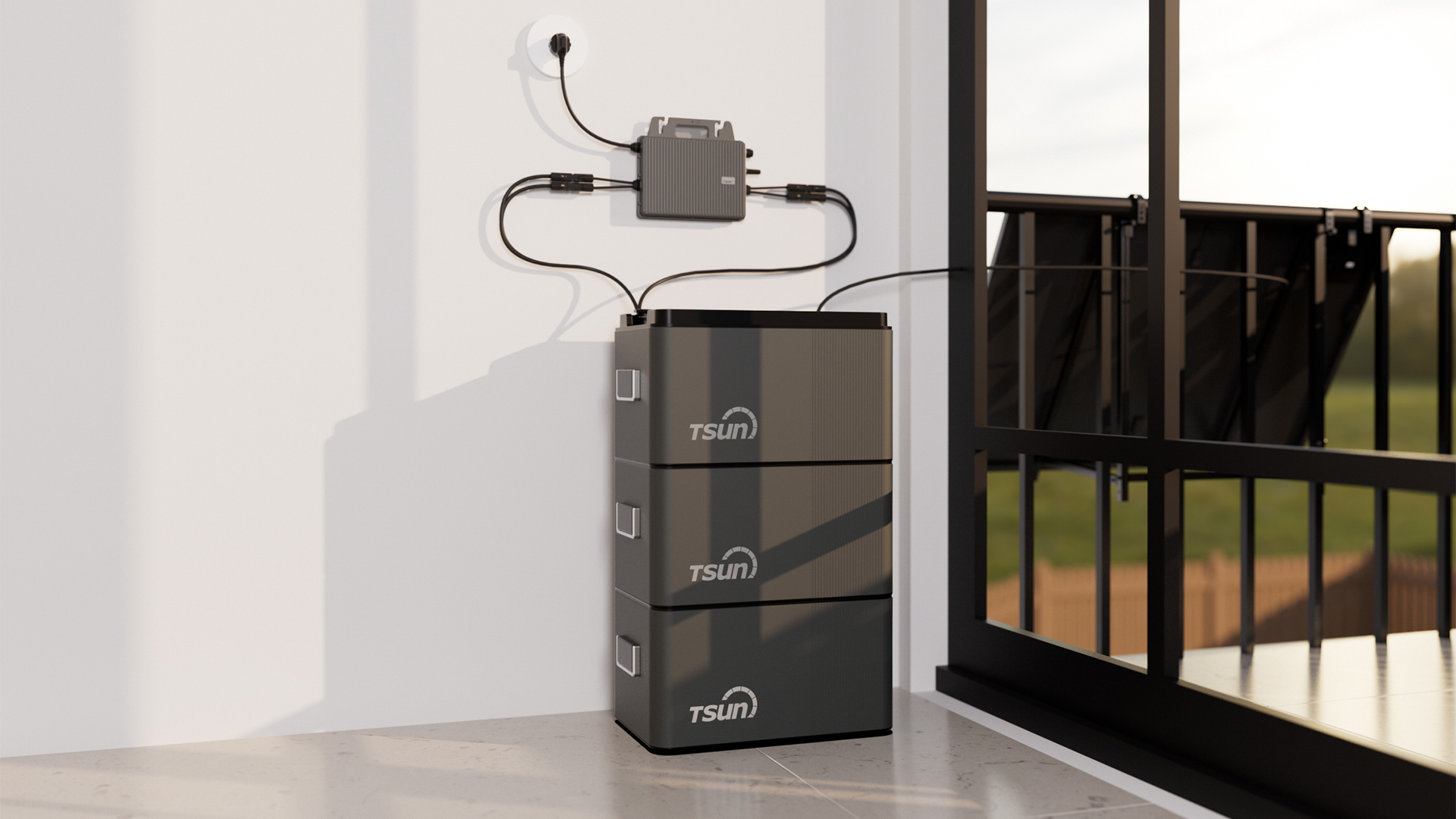

TSUN Energy Storage Solution: DCU + ESK

TSUN’s energy storage solution seamlessly integrates the DCU (Direct Current Coupling Unit) and ESK (Easy Solar Kit) systems, providing a highly efficient and secure solar energy setup for home users. This solution optimizes energy usage while simplifying the operation process. Below is a detailed breakdown of the system:

1. DCU (Direct Current Coupling Unit)

Functions and Advantages:

Stores DC Power: The primary function of the DCU is to receive and store direct current (DC) power from solar panels. During the day, when solar panels produce more power than a household’s immediate needs, the DCU stores the excess energy, preventing waste.

Efficient Energy Conversion: During peak energy usage periods, the DCU transfers the stored DC power through a DC cable to the microinverter, which then converts it into alternating current (AC) for household use. This conversion process ensures efficient energy use, especially during nighttime or grid outages.

Plug-and-Play Design: The DCU features a plug-and-play design, greatly simplifying installation. Users can easily set up the system by connecting the DCU to the solar panels and microinverters, without needing complex configurations or technical expertise.

Applications:

Residential Solar Systems: Ideal for home solar systems, especially for households aiming for energy self-sufficiency.

Off-Grid Applications: When combined with devices like the P1000, the DCU can also be used for off-grid power solutions, providing electricity for outdoor activities.

2. ESK (Easy Solar Kit)

System Components:

Balcony Microinverter: Specifically designed for home solar systems, this microinverter efficiently converts the DC power generated by solar panels into AC power. Its plug-and-play design enhances system flexibility and reduces the complexity of maintenance and troubleshooting.

Solar Panels: Solar panels capture sunlight and generate electricity. TSUN’s panels are efficient, durable, and capable of stable performance in various weather conditions.

Mounting Kits: The mounting kits secure the solar panels at optimal angles for maximum sunlight exposure. These kits are designed for structural stability and wind resistance, ensuring long-term system reliability.

System Advantages:

Integrated Design: The ESK system integrates all key components, making installation more efficient and streamlined. Users don’t need to purchase or configure multiple separate components, simplifying the construction and management of the system.

Efficient Power Generation: The combination of high-efficiency solar panels and microinverters ensures maximum solar energy output, minimizing energy loss.

Flexibility: The ESK system is designed with user flexibility in mind and can be adjusted to meet specific household power needs, ensuring a reliable and adaptable energy supply.

3. Plug-and-Play Design

Both TSUN’s DCU and ESK systems feature a plug-and-play design, offering the following benefits:

Simplified Installation: Users can easily complete the system setup by connecting the DCU, solar panels, and microinverters. No complex wiring or configuration is required, greatly reducing installation time.

Safety: The plug-and-play design minimizes the risk of wiring errors, increasing the overall safety of the system. Users can operate the system with greater confidence, without worrying about complicated electrical setups.

User-Friendly: This design allows even non-professional users to easily install and operate the system, enabling efficient household energy management.

P1000 and B1000: In-Depth Analysis of Expanded Application Scenarios

TSUN’s P1000 and B1000 products are crucial for extending the capabilities of photovoltaic energy storage systems, particularly for off-grid power supply and increasing storage capacity. They offer flexible and diverse applications across various scenarios. Below is a detailed analysis of the working principles, features, and application contexts of the P1000 and B1000.

P1000: Key for Outdoor and Off-Grid Power

The P1000 is a multifunctional energy storage device designed by TSUN for outdoor and emergency applications. It features a built-in inverter that converts DC power into AC, ensuring continuous operation of equipment in off-grid, emergency, or outdoor scenarios.

Built-in Inverter: Easy DC-to-AC Conversion The P1000’s built-in inverter is its core component, capable of converting DC power stored in the DCU or generated by solar panels into AC power suitable for household devices. Users can convert stored energy into standard 110V or 220V AC output through the P1000, providing uninterrupted power for appliances, charging devices, and small electronics without relying on the grid.

Multi-functional Output Ports: Support for Multiple Devices Simultaneously The P1000 is equipped with multiple output ports, including AC sockets and USB ports, allowing users to power various devices simultaneously. This feature is especially useful for outdoor camping, construction sites, or gatherings, where it can power phones, laptops, LED lighting, and other devices, avoiding inconvenience caused by insufficient power.

Compact Design and Easy Portability The P1000 is designed to be lightweight and portable, with dustproof and waterproof features that enhance its adaptability to harsh environments. It is ideal for long-term outdoor activities or remote workstations, providing durability in various conditions.

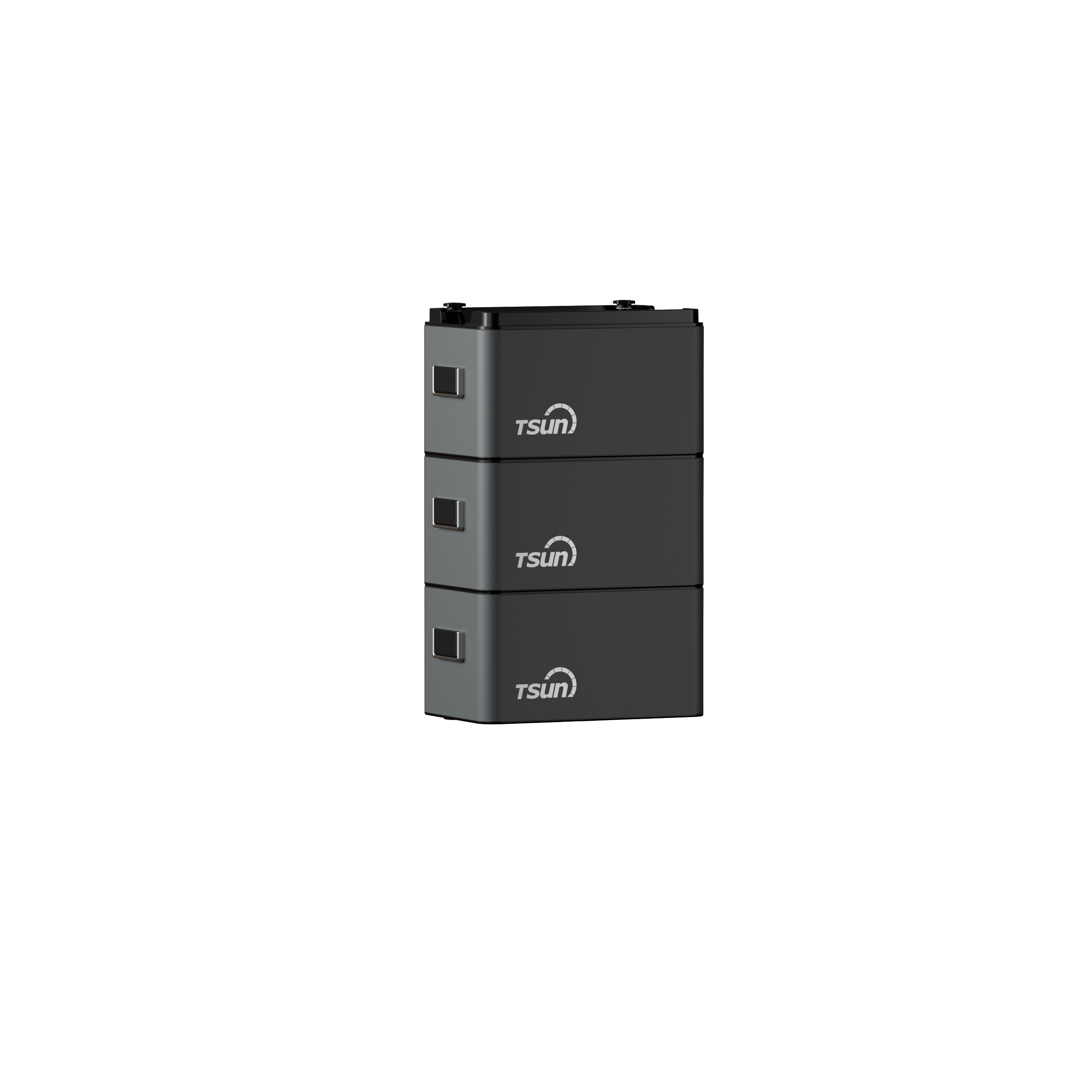

B1000: Flexible Battery Storage Expansion

The B1000 is an expansion battery pack designed to add extra storage capacity to existing systems like the DCU and P1000, addressing the need for continuous power supply during extended off-grid periods or high energy consumption.

Increased Storage Capacity: Extend System Operating Time The primary function of the B1000 is to provide additional battery capacity by connecting it to the DCU or P1000. Essentially a high-capacity backup battery pack, it stores extra DC power when needed. For instance, during sunny conditions, excess solar power can be stored in the B1000, extending the power supply during nighttime or power outages, and preventing energy waste.

Plug-and-Play Design: Easy Expansion and High Compatibility The B1000’s design supports a plug-and-play feature similar to the DCU and P1000. Users simply connect the B1000 to the existing system, and it will automatically be recognized and start storing energy without complex electrical installation. This design allows users to dynamically adjust storage capacity according to their needs, and the B1000 can also connect with other compatible devices, further expanding its application flexibility.

Modular Design: Adaptability to Diverse Scenarios The B1000 supports modular expansion, allowing users to choose one or more units to connect in series or parallel based on their needs. This modularity makes the B1000 particularly suitable for upgrading home storage or large-scale off-grid projects. By combining multiple B1000 units, users can create a high-capacity storage system to meet long-term off-grid power requirements.

Expanded Application Scenarios

Outdoor Camping and Remote Work The P1000, combined with the DCU system, allows users to power various devices during outdoor camping, such as lighting, cooking appliances, and electronic devices. The B1000 provides additional battery capacity to ensure extended power needs, avoiding inconvenience due to insufficient power during outdoor activities.

Home Emergency Power Supply In case of power outages or unstable grid conditions, the P1000 and B1000 can offer emergency power support for homes. Users can utilize the energy stored in the DCU through the P1000 to convert it into AC power for essential appliances (e.g., refrigerators, lighting, communication devices), while the B1000’s expansion capabilities ensure ample energy reserves during prolonged outages.

Construction Sites and Remote Construction In remote construction sites without grid coverage, the P1000’s multi-port design can simultaneously power electric tools, lighting systems, and measurement equipment. By connecting multiple B1000 units in series, users can ensure that power is uninterrupted throughout the construction process, significantly improving efficiency.

Disaster Relief and Emergency Scenarios In cases of natural disasters or emergencies, the P1000 and B1000 system can be quickly deployed to provide critical power support for rescue equipment, communication tools, and medical devices, helping emergency teams maintain power supply and ensuring the smooth execution of rescue operations.

DCU1000+P1000	B1000+P1000

Conclusion: The Ideal Combination of Solar PV and Batteries

The perfect integration of solar PV systems and battery storage represents a significant enhancement in energy efficiency and user autonomy. By efficiently pairing microinverters with batteries, not only can the overall performance of solar systems be optimized, but issues related to energy storage and supply can also be effectively addressed.

Optimizing Usage Efficiency

Microinverters convert DC power generated by solar panels into AC power for home use, ensuring efficient utilization of solar energy. Battery storage solutions capture excess power during sunny periods, preventing energy waste. Stored power can then be converted into AC power by microinverters during grid outages or nighttime, ensuring a stable power supply for homes.

Enhancing User Autonomy

TSUN’s products, including the DCU (DC Coupled Unit), P1000, and B1000, enable flexible energy management to suit various scenarios. Whether for home emergency power, outdoor camping, construction sites, or disaster relief, these devices provide reliable power support. The P1000’s built-in inverter converts stored DC power into AC, supporting multiple devices simultaneously, while the B1000 offers additional storage capacity to meet extended power needs.

TSUN’s energy storage solutions, with their plug-and-play design, optimized energy use, and high compatibility, help users easily achieve intelligent home energy management. We encourage readers to explore TSUN’s comprehensive solutions to select the most suitable storage system based on their needs and prepare for the future of smart home energy management.

To learn more about TSUN’s energy storage solutions, click here to contact us and discover how advanced solar and storage technology can elevate your home energy management.
